ノートブックをダウンロードこのノートブックベースのチュートリアルでは、TFXパイプラインを作成して実行し、入力データを検証してMLモデルを作成します。このノートブックは、私たちが組み込まTFXパイプラインに基づいていますシンプルなTFXパイプラインのチュートリアル。そのチュートリアルをまだ読んでいない場合は、このノートブックに進む前に読んでください。
データサイエンスまたはMLプロジェクトの最初のタスクは、データを理解してクリーンアップすることです。これには、次のものが含まれます。
- 各機能に関するデータ型、分布、およびその他の情報（平均値、一意の数など）を理解する
- データを説明する予備スキーマの生成
- 特定のスキーマに関するデータの異常と欠落値の特定
このチュートリアルでは、2つのTFXパイプラインを作成します。
まず、データセットを分析し、指定されたデータセットの予備スキーマを生成するパイプラインを作成します。このパイプラインは、2つの新しいコンポーネントが含まれますStatisticsGenとSchemaGen 。
データの適切なスキーマができたら、前のチュートリアルのパイプラインに基づいてML分類モデルをトレーニングするパイプラインを作成します。このパイプラインでは、第1パイプラインと、新しいコンポーネント、からスキーマを使用しますExampleValidator入力データを検証するために、。
3つの新しいコンポーネント、StatisticsGen、SchemaGenとExampleValidatorは、データ分析と検証のためのTFXの成分であり、彼らが使用して実装されていTensorFlowデータ検証ライブラリを。
参照してくださいTFXパイプラインが理解TFXの様々な概念についての詳細を学ぶために。
設定
まず、TFX Pythonパッケージをインストールし、モデルに使用するデータセットをダウンロードする必要があります。
アップグレードピップ
ローカルで実行しているときにシステムでPipをアップグレードしないようにするには、Colabで実行していることを確認してください。もちろん、ローカルシステムは個別にアップグレードできます。
try:
import colab
!pip install --upgrade pip
except:
pass
TFXをインストールする
pip install -U tfx
ランタイムを再起動しましたか？
上記のセルを初めて実行するときにGoogleColabを使用している場合は、[ランタイムの再起動]ボタンをクリックするか、[ランタイム]> [ランタイムの再起動...]メニューを使用してランタイムを再起動する必要があります。これは、Colabがパッケージをロードする方法が原因です。
TensorFlowとTFXのバージョンを確認してください。
import tensorflow as tf
print('TensorFlow version: {}'.format(tf.__version__))
from tfx import v1 as tfx
print('TFX version: {}'.format(tfx.__version__))
TensorFlow version: 2.6.2 TFX version: 1.4.0
変数を設定する
パイプラインを定義するために使用されるいくつかの変数があります。これらの変数は必要に応じてカスタマイズできます。デフォルトでは、パイプラインからのすべての出力は現在のディレクトリの下に生成されます。
import os
# We will create two pipelines. One for schema generation and one for training.
SCHEMA_PIPELINE_NAME = "penguin-tfdv-schema"
PIPELINE_NAME = "penguin-tfdv"
# Output directory to store artifacts generated from the pipeline.
SCHEMA_PIPELINE_ROOT = os.path.join('pipelines', SCHEMA_PIPELINE_NAME)
PIPELINE_ROOT = os.path.join('pipelines', PIPELINE_NAME)
# Path to a SQLite DB file to use as an MLMD storage.
SCHEMA_METADATA_PATH = os.path.join('metadata', SCHEMA_PIPELINE_NAME,
'metadata.db')
METADATA_PATH = os.path.join('metadata', PIPELINE_NAME, 'metadata.db')
# Output directory where created models from the pipeline will be exported.
SERVING_MODEL_DIR = os.path.join('serving_model', PIPELINE_NAME)
from absl import logging
logging.set_verbosity(logging.INFO) # Set default logging level.
サンプルデータを準備する
TFXパイプラインで使用するサンプルデータセットをダウンロードします。私たちが使用しているデータセットがあるパーマーペンギンデータセットも他で使用されているTFX例。
このデータセットには、次の4つの数値機能があります。
- culmen_length_mm
- culmen_depth_mm
- フリッパー_長さ_mm
- body_mass_g
すべての特徴は、範囲[0,1]を持つようにすでに正規化されています。私たちは、予測、分類モデル構築するspeciesのペンギンのを。
TFX ExampleGenコンポーネントはディレクトリから入力を読み取るため、ディレクトリを作成してデータセットをそこにコピーする必要があります。
import urllib.request
import tempfile
DATA_ROOT = tempfile.mkdtemp(prefix='tfx-data') # Create a temporary directory.
_data_url = 'https://raw.githubusercontent.com/tensorflow/tfx/master/tfx/examples/penguin/data/labelled/penguins_processed.csv'
_data_filepath = os.path.join(DATA_ROOT, "data.csv")
urllib.request.urlretrieve(_data_url, _data_filepath)
('/tmp/tfx-datan3p7t1d2/data.csv', <http.client.HTTPMessage at 0x7f8d2f9f9110>)
CSVファイルをざっと見てみましょう。
head {_data_filepath}
species,culmen_length_mm,culmen_depth_mm,flipper_length_mm,body_mass_g 0,0.2545454545454545,0.6666666666666666,0.15254237288135594,0.2916666666666667 0,0.26909090909090905,0.5119047619047618,0.23728813559322035,0.3055555555555556 0,0.29818181818181805,0.5833333333333334,0.3898305084745763,0.1527777777777778 0,0.16727272727272732,0.7380952380952381,0.3559322033898305,0.20833333333333334 0,0.26181818181818167,0.892857142857143,0.3050847457627119,0.2638888888888889 0,0.24727272727272717,0.5595238095238096,0.15254237288135594,0.2569444444444444 0,0.25818181818181823,0.773809523809524,0.3898305084745763,0.5486111111111112 0,0.32727272727272727,0.5357142857142859,0.1694915254237288,0.1388888888888889 0,0.23636363636363636,0.9642857142857142,0.3220338983050847,0.3055555555555556
5つの機能列が表示されるはずです。 species 0、1または2の一つであり、他のすべての機能は、私たちは、このデータセットを分析するTFXパイプラインを作成します0と1の間の値を持つ必要があります。
予備スキーマを生成する
TFXパイプラインは、PythonAPIを使用して定義されます。入力例からスキーマを自動的に生成するパイプラインを作成します。このスキーマは、人間が確認し、必要に応じて調整できます。スキーマが完成すると、後のタスクでのトレーニングと検証例に使用できます。
加えて、 CsvExampleGenに使用されているシンプルなTFXパイプラインチュートリアル、我々が使用するStatisticsGenとSchemaGen ：

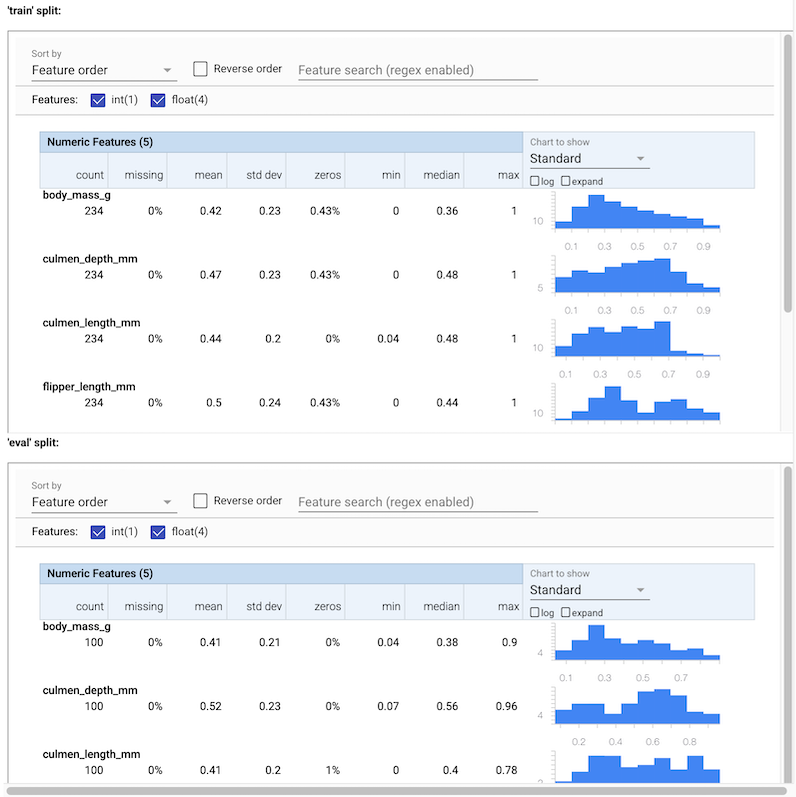

- StatisticsGenは、データセットの統計情報を計算します。
- SchemaGenは、統計を調べて、初期データスキーマを作成します。
各コンポーネントのガイドを参照するか、 TFXのコンポーネントは、チュートリアル、これらのコンポーネントの詳細を学ぶために。
パイプライン定義を書く
TFXパイプラインを作成する関数を定義します。 A Pipelineオブジェクトは、TFXのサポートされているパイプラインのオーケストレーションシステムのいずれかを使用して実行することができTFXパイプラインを表しています。
def _create_schema_pipeline(pipeline_name: str,
pipeline_root: str,
data_root: str,
metadata_path: str) -> tfx.dsl.Pipeline:
"""Creates a pipeline for schema generation."""
# Brings data into the pipeline.
example_gen = tfx.components.CsvExampleGen(input_base=data_root)
# NEW: Computes statistics over data for visualization and schema generation.
statistics_gen = tfx.components.StatisticsGen(
examples=example_gen.outputs['examples'])
# NEW: Generates schema based on the generated statistics.
schema_gen = tfx.components.SchemaGen(
statistics=statistics_gen.outputs['statistics'], infer_feature_shape=True)
components = [
example_gen,
statistics_gen,
schema_gen,
]
return tfx.dsl.Pipeline(
pipeline_name=pipeline_name,
pipeline_root=pipeline_root,
metadata_connection_config=tfx.orchestration.metadata
.sqlite_metadata_connection_config(metadata_path),
components=components)
パイプラインを実行する
私たちは、使用するLocalDagRunner前のチュートリアルのように。
tfx.orchestration.LocalDagRunner().run(
_create_schema_pipeline(
pipeline_name=SCHEMA_PIPELINE_NAME,
pipeline_root=SCHEMA_PIPELINE_ROOT,
data_root=DATA_ROOT,
metadata_path=SCHEMA_METADATA_PATH))
INFO:absl:Excluding no splits because exclude_splits is not set.
INFO:absl:Excluding no splits because exclude_splits is not set.
INFO:absl:Using deployment config:
executor_specs {
key: "CsvExampleGen"
value {
beam_executable_spec {
python_executor_spec {
class_path: "tfx.components.example_gen.csv_example_gen.executor.Executor"
}
}
}
}
executor_specs {
key: "SchemaGen"
value {
python_class_executable_spec {
class_path: "tfx.components.schema_gen.executor.Executor"
}
}
}
executor_specs {
key: "StatisticsGen"
value {
beam_executable_spec {
python_executor_spec {
class_path: "tfx.components.statistics_gen.executor.Executor"
}
}
}
}
custom_driver_specs {
key: "CsvExampleGen"
value {
python_class_executable_spec {
class_path: "tfx.components.example_gen.driver.FileBasedDriver"
}
}
}
metadata_connection_config {
sqlite {
filename_uri: "metadata/penguin-tfdv-schema/metadata.db"
connection_mode: READWRITE_OPENCREATE
}
}
INFO:absl:Using connection config:
sqlite {
filename_uri: "metadata/penguin-tfdv-schema/metadata.db"
connection_mode: READWRITE_OPENCREATE
}
INFO:absl:Component CsvExampleGen is running.
INFO:absl:Running launcher for node_info {
type {
name: "tfx.components.example_gen.csv_example_gen.component.CsvExampleGen"
}
id: "CsvExampleGen"
}
contexts {
contexts {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv-schema"
}
}
}
contexts {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:06.420329"
}
}
}
contexts {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv-schema.CsvExampleGen"
}
}
}
}
outputs {
outputs {
key: "examples"
value {
artifact_spec {
type {
name: "Examples"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
properties {
key: "version"
value: INT
}
}
}
}
}
}
parameters {
parameters {
key: "input_base"
value {
field_value {
string_value: "/tmp/tfx-datan3p7t1d2"
}
}
}
parameters {
key: "input_config"
value {
field_value {
string_value: "{\n \"splits\": [\n {\n \"name\": \"single_split\",\n \"pattern\": \"*\"\n }\n ]\n}"
}
}
}
parameters {
key: "output_config"
value {
field_value {
string_value: "{\n \"split_config\": {\n \"splits\": [\n {\n \"hash_buckets\": 2,\n \"name\": \"train\"\n },\n {\n \"hash_buckets\": 1,\n \"name\": \"eval\"\n }\n ]\n }\n}"
}
}
}
parameters {
key: "output_data_format"
value {
field_value {
int_value: 6
}
}
}
parameters {
key: "output_file_format"
value {
field_value {
int_value: 5
}
}
}
}
downstream_nodes: "StatisticsGen"
execution_options {
caching_options {
}
}
INFO:absl:MetadataStore with DB connection initialized
WARNING: Logging before InitGoogleLogging() is written to STDERR
I1205 11:10:06.444468 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
I1205 11:10:06.453292 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
I1205 11:10:06.460209 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
I1205 11:10:06.467104 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
INFO:absl:select span and version = (0, None)
INFO:absl:latest span and version = (0, None)
INFO:absl:MetadataStore with DB connection initialized
INFO:absl:Going to run a new execution 1
I1205 11:10:06.521926 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
INFO:absl:Going to run a new execution: ExecutionInfo(execution_id=1, input_dict={}, output_dict=defaultdict(<class 'list'>, {'examples': [Artifact(artifact: uri: "pipelines/penguin-tfdv-schema/CsvExampleGen/examples/1"
custom_properties {
key: "input_fingerprint"
value {
string_value: "split:single_split,num_files:1,total_bytes:25648,xor_checksum:1638702606,sum_checksum:1638702606"
}
}
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv-schema:2021-12-05T11:10:06.420329:CsvExampleGen:examples:0"
}
}
custom_properties {
key: "span"
value {
int_value: 0
}
}
, artifact_type: name: "Examples"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
properties {
key: "version"
value: INT
}
)]}), exec_properties={'input_config': '{\n "splits": [\n {\n "name": "single_split",\n "pattern": "*"\n }\n ]\n}', 'output_config': '{\n "split_config": {\n "splits": [\n {\n "hash_buckets": 2,\n "name": "train"\n },\n {\n "hash_buckets": 1,\n "name": "eval"\n }\n ]\n }\n}', 'input_base': '/tmp/tfx-datan3p7t1d2', 'output_file_format': 5, 'output_data_format': 6, 'span': 0, 'version': None, 'input_fingerprint': 'split:single_split,num_files:1,total_bytes:25648,xor_checksum:1638702606,sum_checksum:1638702606'}, execution_output_uri='pipelines/penguin-tfdv-schema/CsvExampleGen/.system/executor_execution/1/executor_output.pb', stateful_working_dir='pipelines/penguin-tfdv-schema/CsvExampleGen/.system/stateful_working_dir/2021-12-05T11:10:06.420329', tmp_dir='pipelines/penguin-tfdv-schema/CsvExampleGen/.system/executor_execution/1/.temp/', pipeline_node=node_info {
type {
name: "tfx.components.example_gen.csv_example_gen.component.CsvExampleGen"
}
id: "CsvExampleGen"
}
contexts {
contexts {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv-schema"
}
}
}
contexts {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:06.420329"
}
}
}
contexts {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv-schema.CsvExampleGen"
}
}
}
}
outputs {
outputs {
key: "examples"
value {
artifact_spec {
type {
name: "Examples"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
properties {
key: "version"
value: INT
}
}
}
}
}
}
parameters {
parameters {
key: "input_base"
value {
field_value {
string_value: "/tmp/tfx-datan3p7t1d2"
}
}
}
parameters {
key: "input_config"
value {
field_value {
string_value: "{\n \"splits\": [\n {\n \"name\": \"single_split\",\n \"pattern\": \"*\"\n }\n ]\n}"
}
}
}
parameters {
key: "output_config"
value {
field_value {
string_value: "{\n \"split_config\": {\n \"splits\": [\n {\n \"hash_buckets\": 2,\n \"name\": \"train\"\n },\n {\n \"hash_buckets\": 1,\n \"name\": \"eval\"\n }\n ]\n }\n}"
}
}
}
parameters {
key: "output_data_format"
value {
field_value {
int_value: 6
}
}
}
parameters {
key: "output_file_format"
value {
field_value {
int_value: 5
}
}
}
}
downstream_nodes: "StatisticsGen"
execution_options {
caching_options {
}
}
, pipeline_info=id: "penguin-tfdv-schema"
, pipeline_run_id='2021-12-05T11:10:06.420329')
INFO:absl:Generating examples.
WARNING:apache_beam.runners.interactive.interactive_environment:Dependencies required for Interactive Beam PCollection visualization are not available, please use: `pip install apache-beam[interactive]` to install necessary dependencies to enable all data visualization features.
INFO:absl:Processing input csv data /tmp/tfx-datan3p7t1d2/* to TFExample.
WARNING:root:Make sure that locally built Python SDK docker image has Python 3.7 interpreter.
WARNING:apache_beam.io.tfrecordio:Couldn't find python-snappy so the implementation of _TFRecordUtil._masked_crc32c is not as fast as it could be.
INFO:absl:Examples generated.
INFO:absl:Cleaning up stateless execution info.
INFO:absl:Execution 1 succeeded.
INFO:absl:Cleaning up stateful execution info.
INFO:absl:Publishing output artifacts defaultdict(<class 'list'>, {'examples': [Artifact(artifact: uri: "pipelines/penguin-tfdv-schema/CsvExampleGen/examples/1"
custom_properties {
key: "input_fingerprint"
value {
string_value: "split:single_split,num_files:1,total_bytes:25648,xor_checksum:1638702606,sum_checksum:1638702606"
}
}
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv-schema:2021-12-05T11:10:06.420329:CsvExampleGen:examples:0"
}
}
custom_properties {
key: "span"
value {
int_value: 0
}
}
custom_properties {
key: "tfx_version"
value {
string_value: "1.4.0"
}
}
, artifact_type: name: "Examples"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
properties {
key: "version"
value: INT
}
)]}) for execution 1
INFO:absl:MetadataStore with DB connection initialized
INFO:absl:Component CsvExampleGen is finished.
INFO:absl:Component StatisticsGen is running.
INFO:absl:Running launcher for node_info {
type {
name: "tfx.components.statistics_gen.component.StatisticsGen"
}
id: "StatisticsGen"
}
contexts {
contexts {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv-schema"
}
}
}
contexts {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:06.420329"
}
}
}
contexts {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv-schema.StatisticsGen"
}
}
}
}
inputs {
inputs {
key: "examples"
value {
channels {
producer_node_query {
id: "CsvExampleGen"
}
context_queries {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv-schema"
}
}
}
context_queries {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:06.420329"
}
}
}
context_queries {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv-schema.CsvExampleGen"
}
}
}
artifact_query {
type {
name: "Examples"
}
}
output_key: "examples"
}
min_count: 1
}
}
}
outputs {
outputs {
key: "statistics"
value {
artifact_spec {
type {
name: "ExampleStatistics"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
}
}
}
}
}
parameters {
parameters {
key: "exclude_splits"
value {
field_value {
string_value: "[]"
}
}
}
}
upstream_nodes: "CsvExampleGen"
downstream_nodes: "SchemaGen"
execution_options {
caching_options {
}
}
INFO:absl:MetadataStore with DB connection initialized
I1205 11:10:08.104562 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
INFO:absl:MetadataStore with DB connection initialized
INFO:absl:Going to run a new execution 2
INFO:absl:Going to run a new execution: ExecutionInfo(execution_id=2, input_dict={'examples': [Artifact(artifact: id: 1
type_id: 15
uri: "pipelines/penguin-tfdv-schema/CsvExampleGen/examples/1"
properties {
key: "split_names"
value {
string_value: "[\"train\", \"eval\"]"
}
}
custom_properties {
key: "file_format"
value {
string_value: "tfrecords_gzip"
}
}
custom_properties {
key: "input_fingerprint"
value {
string_value: "split:single_split,num_files:1,total_bytes:25648,xor_checksum:1638702606,sum_checksum:1638702606"
}
}
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv-schema:2021-12-05T11:10:06.420329:CsvExampleGen:examples:0"
}
}
custom_properties {
key: "payload_format"
value {
string_value: "FORMAT_TF_EXAMPLE"
}
}
custom_properties {
key: "span"
value {
int_value: 0
}
}
custom_properties {
key: "tfx_version"
value {
string_value: "1.4.0"
}
}
state: LIVE
create_time_since_epoch: 1638702608076
last_update_time_since_epoch: 1638702608076
, artifact_type: id: 15
name: "Examples"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
properties {
key: "version"
value: INT
}
)]}, output_dict=defaultdict(<class 'list'>, {'statistics': [Artifact(artifact: uri: "pipelines/penguin-tfdv-schema/StatisticsGen/statistics/2"
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv-schema:2021-12-05T11:10:06.420329:StatisticsGen:statistics:0"
}
}
, artifact_type: name: "ExampleStatistics"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
)]}), exec_properties={'exclude_splits': '[]'}, execution_output_uri='pipelines/penguin-tfdv-schema/StatisticsGen/.system/executor_execution/2/executor_output.pb', stateful_working_dir='pipelines/penguin-tfdv-schema/StatisticsGen/.system/stateful_working_dir/2021-12-05T11:10:06.420329', tmp_dir='pipelines/penguin-tfdv-schema/StatisticsGen/.system/executor_execution/2/.temp/', pipeline_node=node_info {
type {
name: "tfx.components.statistics_gen.component.StatisticsGen"
}
id: "StatisticsGen"
}
contexts {
contexts {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv-schema"
}
}
}
contexts {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:06.420329"
}
}
}
contexts {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv-schema.StatisticsGen"
}
}
}
}
inputs {
inputs {
key: "examples"
value {
channels {
producer_node_query {
id: "CsvExampleGen"
}
context_queries {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv-schema"
}
}
}
context_queries {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:06.420329"
}
}
}
context_queries {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv-schema.CsvExampleGen"
}
}
}
artifact_query {
type {
name: "Examples"
}
}
output_key: "examples"
}
min_count: 1
}
}
}
outputs {
outputs {
key: "statistics"
value {
artifact_spec {
type {
name: "ExampleStatistics"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
}
}
}
}
}
parameters {
parameters {
key: "exclude_splits"
value {
field_value {
string_value: "[]"
}
}
}
}
upstream_nodes: "CsvExampleGen"
downstream_nodes: "SchemaGen"
execution_options {
caching_options {
}
}
, pipeline_info=id: "penguin-tfdv-schema"
, pipeline_run_id='2021-12-05T11:10:06.420329')
INFO:absl:Generating statistics for split train.
INFO:absl:Statistics for split train written to pipelines/penguin-tfdv-schema/StatisticsGen/statistics/2/Split-train.
INFO:absl:Generating statistics for split eval.
INFO:absl:Statistics for split eval written to pipelines/penguin-tfdv-schema/StatisticsGen/statistics/2/Split-eval.
WARNING:root:Make sure that locally built Python SDK docker image has Python 3.7 interpreter.
INFO:absl:Cleaning up stateless execution info.
INFO:absl:Execution 2 succeeded.
INFO:absl:Cleaning up stateful execution info.
INFO:absl:Publishing output artifacts defaultdict(<class 'list'>, {'statistics': [Artifact(artifact: uri: "pipelines/penguin-tfdv-schema/StatisticsGen/statistics/2"
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv-schema:2021-12-05T11:10:06.420329:StatisticsGen:statistics:0"
}
}
custom_properties {
key: "tfx_version"
value {
string_value: "1.4.0"
}
}
, artifact_type: name: "ExampleStatistics"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
)]}) for execution 2
INFO:absl:MetadataStore with DB connection initialized
INFO:absl:Component StatisticsGen is finished.
INFO:absl:Component SchemaGen is running.
INFO:absl:Running launcher for node_info {
type {
name: "tfx.components.schema_gen.component.SchemaGen"
}
id: "SchemaGen"
}
contexts {
contexts {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv-schema"
}
}
}
contexts {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:06.420329"
}
}
}
contexts {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv-schema.SchemaGen"
}
}
}
}
inputs {
inputs {
key: "statistics"
value {
channels {
producer_node_query {
id: "StatisticsGen"
}
context_queries {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv-schema"
}
}
}
context_queries {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:06.420329"
}
}
}
context_queries {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv-schema.StatisticsGen"
}
}
}
artifact_query {
type {
name: "ExampleStatistics"
}
}
output_key: "statistics"
}
min_count: 1
}
}
}
outputs {
outputs {
key: "schema"
value {
artifact_spec {
type {
name: "Schema"
}
}
}
}
}
parameters {
parameters {
key: "exclude_splits"
value {
field_value {
string_value: "[]"
}
}
}
parameters {
key: "infer_feature_shape"
value {
field_value {
int_value: 1
}
}
}
}
upstream_nodes: "StatisticsGen"
execution_options {
caching_options {
}
}
INFO:absl:MetadataStore with DB connection initialized
I1205 11:10:10.975282 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
INFO:absl:MetadataStore with DB connection initialized
INFO:absl:Going to run a new execution 3
INFO:absl:Going to run a new execution: ExecutionInfo(execution_id=3, input_dict={'statistics': [Artifact(artifact: id: 2
type_id: 17
uri: "pipelines/penguin-tfdv-schema/StatisticsGen/statistics/2"
properties {
key: "split_names"
value {
string_value: "[\"train\", \"eval\"]"
}
}
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv-schema:2021-12-05T11:10:06.420329:StatisticsGen:statistics:0"
}
}
custom_properties {
key: "tfx_version"
value {
string_value: "1.4.0"
}
}
state: LIVE
create_time_since_epoch: 1638702610957
last_update_time_since_epoch: 1638702610957
, artifact_type: id: 17
name: "ExampleStatistics"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
)]}, output_dict=defaultdict(<class 'list'>, {'schema': [Artifact(artifact: uri: "pipelines/penguin-tfdv-schema/SchemaGen/schema/3"
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv-schema:2021-12-05T11:10:06.420329:SchemaGen:schema:0"
}
}
, artifact_type: name: "Schema"
)]}), exec_properties={'exclude_splits': '[]', 'infer_feature_shape': 1}, execution_output_uri='pipelines/penguin-tfdv-schema/SchemaGen/.system/executor_execution/3/executor_output.pb', stateful_working_dir='pipelines/penguin-tfdv-schema/SchemaGen/.system/stateful_working_dir/2021-12-05T11:10:06.420329', tmp_dir='pipelines/penguin-tfdv-schema/SchemaGen/.system/executor_execution/3/.temp/', pipeline_node=node_info {
type {
name: "tfx.components.schema_gen.component.SchemaGen"
}
id: "SchemaGen"
}
contexts {
contexts {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv-schema"
}
}
}
contexts {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:06.420329"
}
}
}
contexts {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv-schema.SchemaGen"
}
}
}
}
inputs {
inputs {
key: "statistics"
value {
channels {
producer_node_query {
id: "StatisticsGen"
}
context_queries {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv-schema"
}
}
}
context_queries {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:06.420329"
}
}
}
context_queries {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv-schema.StatisticsGen"
}
}
}
artifact_query {
type {
name: "ExampleStatistics"
}
}
output_key: "statistics"
}
min_count: 1
}
}
}
outputs {
outputs {
key: "schema"
value {
artifact_spec {
type {
name: "Schema"
}
}
}
}
}
parameters {
parameters {
key: "exclude_splits"
value {
field_value {
string_value: "[]"
}
}
}
parameters {
key: "infer_feature_shape"
value {
field_value {
int_value: 1
}
}
}
}
upstream_nodes: "StatisticsGen"
execution_options {
caching_options {
}
}
, pipeline_info=id: "penguin-tfdv-schema"
, pipeline_run_id='2021-12-05T11:10:06.420329')
INFO:absl:Processing schema from statistics for split train.
INFO:absl:Processing schema from statistics for split eval.
INFO:absl:Schema written to pipelines/penguin-tfdv-schema/SchemaGen/schema/3/schema.pbtxt.
INFO:absl:Cleaning up stateless execution info.
INFO:absl:Execution 3 succeeded.
INFO:absl:Cleaning up stateful execution info.
INFO:absl:Publishing output artifacts defaultdict(<class 'list'>, {'schema': [Artifact(artifact: uri: "pipelines/penguin-tfdv-schema/SchemaGen/schema/3"
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv-schema:2021-12-05T11:10:06.420329:SchemaGen:schema:0"
}
}
custom_properties {
key: "tfx_version"
value {
string_value: "1.4.0"
}
}
, artifact_type: name: "Schema"
)]}) for execution 3
INFO:absl:MetadataStore with DB connection initialized
INFO:absl:Component SchemaGen is finished.
I1205 11:10:11.010145 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
「INFO：absl：ComponentSchemaGenが終了しました」と表示されます。パイプラインが正常に終了した場合。
データセットを理解するために、パイプラインの出力を調べます。
パイプラインの出力を確認する
前のチュートリアルで説明したように、TFXパイプラインは出力、アーチファクトとの二種類の生成メタデータDB（MLMD）アーティファクトとパイプライン実行のメタデータを含みます。上記のセルでこれらの出力の場所を定義しました。デフォルトでは、アーティファクトが下に格納されているpipelinesディレクトリおよびメタデータは、下のSQLiteデータベースとして格納されmetadataディレクトリ。
MLMD APIを使用して、これらの出力をプログラムで見つけることができます。最初に、生成されたばかりの出力アーティファクトを検索するためのいくつかの効用関数を定義します。
from ml_metadata.proto import metadata_store_pb2
# Non-public APIs, just for showcase.
from tfx.orchestration.portable.mlmd import execution_lib
# TODO(b/171447278): Move these functions into the TFX library.
def get_latest_artifacts(metadata, pipeline_name, component_id):
"""Output artifacts of the latest run of the component."""
context = metadata.store.get_context_by_type_and_name(
'node', f'{pipeline_name}.{component_id}')
executions = metadata.store.get_executions_by_context(context.id)
latest_execution = max(executions,
key=lambda e:e.last_update_time_since_epoch)
return execution_lib.get_artifacts_dict(metadata, latest_execution.id,
[metadata_store_pb2.Event.OUTPUT])
# Non-public APIs, just for showcase.
from tfx.orchestration.experimental.interactive import visualizations
def visualize_artifacts(artifacts):
"""Visualizes artifacts using standard visualization modules."""
for artifact in artifacts:
visualization = visualizations.get_registry().get_visualization(
artifact.type_name)
if visualization:
visualization.display(artifact)
from tfx.orchestration.experimental.interactive import standard_visualizations
standard_visualizations.register_standard_visualizations()
これで、パイプライン実行からの出力を調べることができます。
# Non-public APIs, just for showcase.
from tfx.orchestration.metadata import Metadata
from tfx.types import standard_component_specs
metadata_connection_config = tfx.orchestration.metadata.sqlite_metadata_connection_config(
SCHEMA_METADATA_PATH)
with Metadata(metadata_connection_config) as metadata_handler:
# Find output artifacts from MLMD.
stat_gen_output = get_latest_artifacts(metadata_handler, SCHEMA_PIPELINE_NAME,
'StatisticsGen')
stats_artifacts = stat_gen_output[standard_component_specs.STATISTICS_KEY]
schema_gen_output = get_latest_artifacts(metadata_handler,
SCHEMA_PIPELINE_NAME, 'SchemaGen')
schema_artifacts = schema_gen_output[standard_component_specs.SCHEMA_KEY]
INFO:absl:MetadataStore with DB connection initialized
各コンポーネントからの出力を調べるときが来ました。上述したように、 Tensorflowデータ検証（TFDVは）で使用されStatisticsGenとSchemaGen 、及びTFDVはまた、これらのコンポーネントの出力の可視化を提供します。
このチュートリアルでは、TFDVを内部的に使用して視覚化を表示するTFXの視覚化ヘルパーメソッドを使用します。
StatisticsGenからの出力を調べます
# docs-infra: no-execute
visualize_artifacts(stats_artifacts)
入力データのさまざまな統計を確認できます。これらの統計はに供給されているSchemaGen自動的にデータの初期スキーマを構築します。
SchemaGenからの出力を調べます
visualize_artifacts(schema_artifacts)
このスキーマは、StatisticsGenの出力から自動的に推測されます。 4つのFLOAT機能と1つのINT機能が表示されるはずです。
将来使用するためにスキーマをエクスポートする
生成されたスキーマを確認して改良する必要があります。レビューされたスキーマは、MLモデルトレーニングの後続のパイプラインで使用するために永続化する必要があります。つまり、実際のユースケースのために、スキーマファイルをバージョン管理システムに追加することをお勧めします。このチュートリアルでは、簡単にするために、スキーマを事前定義されたファイルシステムパスにコピーするだけです。
import shutil
_schema_filename = 'schema.pbtxt'
SCHEMA_PATH = 'schema'
os.makedirs(SCHEMA_PATH, exist_ok=True)
_generated_path = os.path.join(schema_artifacts[0].uri, _schema_filename)
# Copy the 'schema.pbtxt' file from the artifact uri to a predefined path.
shutil.copy(_generated_path, SCHEMA_PATH)
'schema/schema.pbtxt'
スキーマファイルは、使用するプロトコルバッファのテキスト形式のインスタンスTensorFlowメタデータスキーマをプロト。
print(f'Schema at {SCHEMA_PATH}-----')
!cat {SCHEMA_PATH}/*
Schema at schema-----
feature {
name: "body_mass_g"
type: FLOAT
presence {
min_fraction: 1.0
min_count: 1
}
shape {
dim {
size: 1
}
}
}
feature {
name: "culmen_depth_mm"
type: FLOAT
presence {
min_fraction: 1.0
min_count: 1
}
shape {
dim {
size: 1
}
}
}
feature {
name: "culmen_length_mm"
type: FLOAT
presence {
min_fraction: 1.0
min_count: 1
}
shape {
dim {
size: 1
}
}
}
feature {
name: "flipper_length_mm"
type: FLOAT
presence {
min_fraction: 1.0
min_count: 1
}
shape {
dim {
size: 1
}
}
}
feature {
name: "species"
type: INT
presence {
min_fraction: 1.0
min_count: 1
}
shape {
dim {
size: 1
}
}
}
必要に応じて、スキーマ定義を確認し、場合によっては編集する必要があります。このチュートリアルでは、生成されたスキーマを変更せずに使用します。
入力例を検証し、MLモデルをトレーニングします
私たちは、私たちが作成したパイプラインに戻りますシンプルTFXパイプラインのチュートリアルMLモデルを訓練し、モデルのトレーニングのコードを書くために生成されたスキーマを使用して、。
我々はまた、追加されますExampleValidatorのスキーマに関して入ってくるデータセット内の異常や欠損値を探しますコンポーネントを。
モデルトレーニングコードを書く
私たちは、私たちが行ったようにモデルコードを記述する必要がシンプルTFXパイプラインのチュートリアル。
モデル自体は前のチュートリアルと同じですが、今回は、機能を手動で指定する代わりに、前のパイプラインから生成されたスキーマを使用します。ほとんどのコードは変更されていません。唯一の違いは、このファイルで機能の名前とタイプを指定する必要がないことです。代わりに、私たちは、スキーマファイルからそれらを読んで。
_trainer_module_file = 'penguin_trainer.py'
%%writefile {_trainer_module_file}
from typing import List
from absl import logging
import tensorflow as tf
from tensorflow import keras
from tensorflow_transform.tf_metadata import schema_utils
from tfx import v1 as tfx
from tfx_bsl.public import tfxio
from tensorflow_metadata.proto.v0 import schema_pb2
# We don't need to specify _FEATURE_KEYS and _FEATURE_SPEC any more.
# Those information can be read from the given schema file.
_LABEL_KEY = 'species'
_TRAIN_BATCH_SIZE = 20
_EVAL_BATCH_SIZE = 10
def _input_fn(file_pattern: List[str],
data_accessor: tfx.components.DataAccessor,
schema: schema_pb2.Schema,
batch_size: int = 200) -> tf.data.Dataset:
"""Generates features and label for training.
Args:
file_pattern: List of paths or patterns of input tfrecord files.
data_accessor: DataAccessor for converting input to RecordBatch.
schema: schema of the input data.
batch_size: representing the number of consecutive elements of returned
dataset to combine in a single batch
Returns:
A dataset that contains (features, indices) tuple where features is a
dictionary of Tensors, and indices is a single Tensor of label indices.
"""
return data_accessor.tf_dataset_factory(
file_pattern,
tfxio.TensorFlowDatasetOptions(
batch_size=batch_size, label_key=_LABEL_KEY),
schema=schema).repeat()
def _build_keras_model(schema: schema_pb2.Schema) -> tf.keras.Model:
"""Creates a DNN Keras model for classifying penguin data.
Returns:
A Keras Model.
"""
# The model below is built with Functional API, please refer to
# https://www.tensorflow.org/guide/keras/overview for all API options.
# ++ Changed code: Uses all features in the schema except the label.
feature_keys = [f.name for f in schema.feature if f.name != _LABEL_KEY]
inputs = [keras.layers.Input(shape=(1,), name=f) for f in feature_keys]
# ++ End of the changed code.
d = keras.layers.concatenate(inputs)
for _ in range(2):
d = keras.layers.Dense(8, activation='relu')(d)
outputs = keras.layers.Dense(3)(d)
model = keras.Model(inputs=inputs, outputs=outputs)
model.compile(
optimizer=keras.optimizers.Adam(1e-2),
loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True),
metrics=[keras.metrics.SparseCategoricalAccuracy()])
model.summary(print_fn=logging.info)
return model
# TFX Trainer will call this function.
def run_fn(fn_args: tfx.components.FnArgs):
"""Train the model based on given args.
Args:
fn_args: Holds args used to train the model as name/value pairs.
"""
# ++ Changed code: Reads in schema file passed to the Trainer component.
schema = tfx.utils.parse_pbtxt_file(fn_args.schema_path, schema_pb2.Schema())
# ++ End of the changed code.
train_dataset = _input_fn(
fn_args.train_files,
fn_args.data_accessor,
schema,
batch_size=_TRAIN_BATCH_SIZE)
eval_dataset = _input_fn(
fn_args.eval_files,
fn_args.data_accessor,
schema,
batch_size=_EVAL_BATCH_SIZE)
model = _build_keras_model(schema)
model.fit(
train_dataset,
steps_per_epoch=fn_args.train_steps,
validation_data=eval_dataset,
validation_steps=fn_args.eval_steps)
# The result of the training should be saved in `fn_args.serving_model_dir`
# directory.
model.save(fn_args.serving_model_dir, save_format='tf')
Writing penguin_trainer.py
これで、モデルトレーニング用のTFXパイプラインを構築するためのすべての準備手順が完了しました。
パイプライン定義を書く
我々は2つの新しいコンポーネント、追加されますImporterとExampleValidator 。インポーターは、外部ファイルをTFXパイプラインに取り込みます。この場合、それはスキーマ定義を含むファイルです。 ExampleValidatorは入力データを調べ、すべての入力データが提供されたデータスキーマに準拠しているかどうかを検証します。
def _create_pipeline(pipeline_name: str, pipeline_root: str, data_root: str,
schema_path: str, module_file: str, serving_model_dir: str,
metadata_path: str) -> tfx.dsl.Pipeline:
"""Creates a pipeline using predefined schema with TFX."""
# Brings data into the pipeline.
example_gen = tfx.components.CsvExampleGen(input_base=data_root)
# Computes statistics over data for visualization and example validation.
statistics_gen = tfx.components.StatisticsGen(
examples=example_gen.outputs['examples'])
# NEW: Import the schema.
schema_importer = tfx.dsl.Importer(
source_uri=schema_path,
artifact_type=tfx.types.standard_artifacts.Schema).with_id(
'schema_importer')
# NEW: Performs anomaly detection based on statistics and data schema.
example_validator = tfx.components.ExampleValidator(
statistics=statistics_gen.outputs['statistics'],
schema=schema_importer.outputs['result'])
# Uses user-provided Python function that trains a model.
trainer = tfx.components.Trainer(
module_file=module_file,
examples=example_gen.outputs['examples'],
schema=schema_importer.outputs['result'], # Pass the imported schema.
train_args=tfx.proto.TrainArgs(num_steps=100),
eval_args=tfx.proto.EvalArgs(num_steps=5))
# Pushes the model to a filesystem destination.
pusher = tfx.components.Pusher(
model=trainer.outputs['model'],
push_destination=tfx.proto.PushDestination(
filesystem=tfx.proto.PushDestination.Filesystem(
base_directory=serving_model_dir)))
components = [
example_gen,
# NEW: Following three components were added to the pipeline.
statistics_gen,
schema_importer,
example_validator,
trainer,
pusher,
]
return tfx.dsl.Pipeline(
pipeline_name=pipeline_name,
pipeline_root=pipeline_root,
metadata_connection_config=tfx.orchestration.metadata
.sqlite_metadata_connection_config(metadata_path),
components=components)
パイプラインを実行する
tfx.orchestration.LocalDagRunner().run(
_create_pipeline(
pipeline_name=PIPELINE_NAME,
pipeline_root=PIPELINE_ROOT,
data_root=DATA_ROOT,
schema_path=SCHEMA_PATH,
module_file=_trainer_module_file,
serving_model_dir=SERVING_MODEL_DIR,
metadata_path=METADATA_PATH))
INFO:absl:Excluding no splits because exclude_splits is not set.
INFO:absl:Excluding no splits because exclude_splits is not set.
INFO:absl:Generating ephemeral wheel package for '/tmpfs/src/temp/docs/tutorials/tfx/penguin_trainer.py' (including modules: ['penguin_trainer']).
INFO:absl:User module package has hash fingerprint version 000876a22093ec764e3751d5a3ed939f1b107d1d6ade133f954ea2a767b8dfb2.
INFO:absl:Executing: ['/tmpfs/src/tf_docs_env/bin/python', '/tmp/tmp50dqc5bp/_tfx_generated_setup.py', 'bdist_wheel', '--bdist-dir', '/tmp/tmp6_kn7s87', '--dist-dir', '/tmp/tmpwt7plki0']
/tmpfs/src/tf_docs_env/lib/python3.7/site-packages/setuptools/command/install.py:37: SetuptoolsDeprecationWarning: setup.py install is deprecated. Use build and pip and other standards-based tools.
setuptools.SetuptoolsDeprecationWarning,
listing git files failed - pretending there aren't any
INFO:absl:Successfully built user code wheel distribution at 'pipelines/penguin-tfdv/_wheels/tfx_user_code_Trainer-0.0+000876a22093ec764e3751d5a3ed939f1b107d1d6ade133f954ea2a767b8dfb2-py3-none-any.whl'; target user module is 'penguin_trainer'.
INFO:absl:Full user module path is 'penguin_trainer@pipelines/penguin-tfdv/_wheels/tfx_user_code_Trainer-0.0+000876a22093ec764e3751d5a3ed939f1b107d1d6ade133f954ea2a767b8dfb2-py3-none-any.whl'
INFO:absl:Using deployment config:
executor_specs {
key: "CsvExampleGen"
value {
beam_executable_spec {
python_executor_spec {
class_path: "tfx.components.example_gen.csv_example_gen.executor.Executor"
}
}
}
}
executor_specs {
key: "ExampleValidator"
value {
python_class_executable_spec {
class_path: "tfx.components.example_validator.executor.Executor"
}
}
}
executor_specs {
key: "Pusher"
value {
python_class_executable_spec {
class_path: "tfx.components.pusher.executor.Executor"
}
}
}
executor_specs {
key: "StatisticsGen"
value {
beam_executable_spec {
python_executor_spec {
class_path: "tfx.components.statistics_gen.executor.Executor"
}
}
}
}
executor_specs {
key: "Trainer"
value {
python_class_executable_spec {
class_path: "tfx.components.trainer.executor.GenericExecutor"
}
}
}
custom_driver_specs {
key: "CsvExampleGen"
value {
python_class_executable_spec {
class_path: "tfx.components.example_gen.driver.FileBasedDriver"
}
}
}
metadata_connection_config {
sqlite {
filename_uri: "metadata/penguin-tfdv/metadata.db"
connection_mode: READWRITE_OPENCREATE
}
}
INFO:absl:Using connection config:
sqlite {
filename_uri: "metadata/penguin-tfdv/metadata.db"
connection_mode: READWRITE_OPENCREATE
}
INFO:absl:Component CsvExampleGen is running.
INFO:absl:Running launcher for node_info {
type {
name: "tfx.components.example_gen.csv_example_gen.component.CsvExampleGen"
}
id: "CsvExampleGen"
}
contexts {
contexts {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
contexts {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
contexts {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.CsvExampleGen"
}
}
}
}
outputs {
outputs {
key: "examples"
value {
artifact_spec {
type {
name: "Examples"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
properties {
key: "version"
value: INT
}
}
}
}
}
}
parameters {
parameters {
key: "input_base"
value {
field_value {
string_value: "/tmp/tfx-datan3p7t1d2"
}
}
}
parameters {
key: "input_config"
value {
field_value {
string_value: "{\n \"splits\": [\n {\n \"name\": \"single_split\",\n \"pattern\": \"*\"\n }\n ]\n}"
}
}
}
parameters {
key: "output_config"
value {
field_value {
string_value: "{\n \"split_config\": {\n \"splits\": [\n {\n \"hash_buckets\": 2,\n \"name\": \"train\"\n },\n {\n \"hash_buckets\": 1,\n \"name\": \"eval\"\n }\n ]\n }\n}"
}
}
}
parameters {
key: "output_data_format"
value {
field_value {
int_value: 6
}
}
}
parameters {
key: "output_file_format"
value {
field_value {
int_value: 5
}
}
}
}
downstream_nodes: "StatisticsGen"
downstream_nodes: "Trainer"
execution_options {
caching_options {
}
}
INFO:absl:MetadataStore with DB connection initialized
I1205 11:10:11.685647 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
I1205 11:10:11.692644 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
I1205 11:10:11.699625 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
I1205 11:10:11.708110 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
INFO:absl:select span and version = (0, None)
INFO:absl:latest span and version = (0, None)
INFO:absl:MetadataStore with DB connection initialized
INFO:absl:Going to run a new execution 1
I1205 11:10:11.722760 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
INFO:absl:Going to run a new execution: ExecutionInfo(execution_id=1, input_dict={}, output_dict=defaultdict(<class 'list'>, {'examples': [Artifact(artifact: uri: "pipelines/penguin-tfdv/CsvExampleGen/examples/1"
custom_properties {
key: "input_fingerprint"
value {
string_value: "split:single_split,num_files:1,total_bytes:25648,xor_checksum:1638702606,sum_checksum:1638702606"
}
}
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv:2021-12-05T11:10:11.667239:CsvExampleGen:examples:0"
}
}
custom_properties {
key: "span"
value {
int_value: 0
}
}
, artifact_type: name: "Examples"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
properties {
key: "version"
value: INT
}
)]}), exec_properties={'input_base': '/tmp/tfx-datan3p7t1d2', 'input_config': '{\n "splits": [\n {\n "name": "single_split",\n "pattern": "*"\n }\n ]\n}', 'output_data_format': 6, 'output_config': '{\n "split_config": {\n "splits": [\n {\n "hash_buckets": 2,\n "name": "train"\n },\n {\n "hash_buckets": 1,\n "name": "eval"\n }\n ]\n }\n}', 'output_file_format': 5, 'span': 0, 'version': None, 'input_fingerprint': 'split:single_split,num_files:1,total_bytes:25648,xor_checksum:1638702606,sum_checksum:1638702606'}, execution_output_uri='pipelines/penguin-tfdv/CsvExampleGen/.system/executor_execution/1/executor_output.pb', stateful_working_dir='pipelines/penguin-tfdv/CsvExampleGen/.system/stateful_working_dir/2021-12-05T11:10:11.667239', tmp_dir='pipelines/penguin-tfdv/CsvExampleGen/.system/executor_execution/1/.temp/', pipeline_node=node_info {
type {
name: "tfx.components.example_gen.csv_example_gen.component.CsvExampleGen"
}
id: "CsvExampleGen"
}
contexts {
contexts {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
contexts {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
contexts {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.CsvExampleGen"
}
}
}
}
outputs {
outputs {
key: "examples"
value {
artifact_spec {
type {
name: "Examples"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
properties {
key: "version"
value: INT
}
}
}
}
}
}
parameters {
parameters {
key: "input_base"
value {
field_value {
string_value: "/tmp/tfx-datan3p7t1d2"
}
}
}
parameters {
key: "input_config"
value {
field_value {
string_value: "{\n \"splits\": [\n {\n \"name\": \"single_split\",\n \"pattern\": \"*\"\n }\n ]\n}"
}
}
}
parameters {
key: "output_config"
value {
field_value {
string_value: "{\n \"split_config\": {\n \"splits\": [\n {\n \"hash_buckets\": 2,\n \"name\": \"train\"\n },\n {\n \"hash_buckets\": 1,\n \"name\": \"eval\"\n }\n ]\n }\n}"
}
}
}
parameters {
key: "output_data_format"
value {
field_value {
int_value: 6
}
}
}
parameters {
key: "output_file_format"
value {
field_value {
int_value: 5
}
}
}
}
downstream_nodes: "StatisticsGen"
downstream_nodes: "Trainer"
execution_options {
caching_options {
}
}
, pipeline_info=id: "penguin-tfdv"
, pipeline_run_id='2021-12-05T11:10:11.667239')
INFO:absl:Generating examples.
INFO:absl:Processing input csv data /tmp/tfx-datan3p7t1d2/* to TFExample.
running bdist_wheel
running build
running build_py
creating build
creating build/lib
copying penguin_trainer.py -> build/lib
installing to /tmp/tmp6_kn7s87
running install
running install_lib
copying build/lib/penguin_trainer.py -> /tmp/tmp6_kn7s87
running install_egg_info
running egg_info
creating tfx_user_code_Trainer.egg-info
writing tfx_user_code_Trainer.egg-info/PKG-INFO
writing dependency_links to tfx_user_code_Trainer.egg-info/dependency_links.txt
writing top-level names to tfx_user_code_Trainer.egg-info/top_level.txt
writing manifest file 'tfx_user_code_Trainer.egg-info/SOURCES.txt'
reading manifest file 'tfx_user_code_Trainer.egg-info/SOURCES.txt'
writing manifest file 'tfx_user_code_Trainer.egg-info/SOURCES.txt'
Copying tfx_user_code_Trainer.egg-info to /tmp/tmp6_kn7s87/tfx_user_code_Trainer-0.0+000876a22093ec764e3751d5a3ed939f1b107d1d6ade133f954ea2a767b8dfb2-py3.7.egg-info
running install_scripts
creating /tmp/tmp6_kn7s87/tfx_user_code_Trainer-0.0+000876a22093ec764e3751d5a3ed939f1b107d1d6ade133f954ea2a767b8dfb2.dist-info/WHEEL
creating '/tmp/tmpwt7plki0/tfx_user_code_Trainer-0.0+000876a22093ec764e3751d5a3ed939f1b107d1d6ade133f954ea2a767b8dfb2-py3-none-any.whl' and adding '/tmp/tmp6_kn7s87' to it
adding 'penguin_trainer.py'
adding 'tfx_user_code_Trainer-0.0+000876a22093ec764e3751d5a3ed939f1b107d1d6ade133f954ea2a767b8dfb2.dist-info/METADATA'
adding 'tfx_user_code_Trainer-0.0+000876a22093ec764e3751d5a3ed939f1b107d1d6ade133f954ea2a767b8dfb2.dist-info/WHEEL'
adding 'tfx_user_code_Trainer-0.0+000876a22093ec764e3751d5a3ed939f1b107d1d6ade133f954ea2a767b8dfb2.dist-info/top_level.txt'
adding 'tfx_user_code_Trainer-0.0+000876a22093ec764e3751d5a3ed939f1b107d1d6ade133f954ea2a767b8dfb2.dist-info/RECORD'
removing /tmp/tmp6_kn7s87
WARNING:root:Make sure that locally built Python SDK docker image has Python 3.7 interpreter.
INFO:absl:Examples generated.
INFO:absl:Cleaning up stateless execution info.
INFO:absl:Execution 1 succeeded.
INFO:absl:Cleaning up stateful execution info.
INFO:absl:Publishing output artifacts defaultdict(<class 'list'>, {'examples': [Artifact(artifact: uri: "pipelines/penguin-tfdv/CsvExampleGen/examples/1"
custom_properties {
key: "input_fingerprint"
value {
string_value: "split:single_split,num_files:1,total_bytes:25648,xor_checksum:1638702606,sum_checksum:1638702606"
}
}
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv:2021-12-05T11:10:11.667239:CsvExampleGen:examples:0"
}
}
custom_properties {
key: "span"
value {
int_value: 0
}
}
custom_properties {
key: "tfx_version"
value {
string_value: "1.4.0"
}
}
, artifact_type: name: "Examples"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
properties {
key: "version"
value: INT
}
)]}) for execution 1
INFO:absl:MetadataStore with DB connection initialized
INFO:absl:Component CsvExampleGen is finished.
INFO:absl:Component schema_importer is running.
INFO:absl:Running launcher for node_info {
type {
name: "tfx.dsl.components.common.importer.Importer"
}
id: "schema_importer"
}
contexts {
contexts {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
contexts {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
contexts {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.schema_importer"
}
}
}
}
outputs {
outputs {
key: "result"
value {
artifact_spec {
type {
name: "Schema"
}
}
}
}
}
parameters {
parameters {
key: "artifact_uri"
value {
field_value {
string_value: "schema"
}
}
}
parameters {
key: "reimport"
value {
field_value {
int_value: 0
}
}
}
}
downstream_nodes: "ExampleValidator"
downstream_nodes: "Trainer"
execution_options {
caching_options {
}
}
INFO:absl:Running as an importer node.
INFO:absl:MetadataStore with DB connection initialized
I1205 11:10:12.796727 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
INFO:absl:Processing source uri: schema, properties: {}, custom_properties: {}
INFO:absl:Component schema_importer is finished.
I1205 11:10:12.806819 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
INFO:absl:Component StatisticsGen is running.
INFO:absl:Running launcher for node_info {
type {
name: "tfx.components.statistics_gen.component.StatisticsGen"
}
id: "StatisticsGen"
}
contexts {
contexts {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
contexts {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
contexts {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.StatisticsGen"
}
}
}
}
inputs {
inputs {
key: "examples"
value {
channels {
producer_node_query {
id: "CsvExampleGen"
}
context_queries {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
context_queries {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
context_queries {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.CsvExampleGen"
}
}
}
artifact_query {
type {
name: "Examples"
}
}
output_key: "examples"
}
min_count: 1
}
}
}
outputs {
outputs {
key: "statistics"
value {
artifact_spec {
type {
name: "ExampleStatistics"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
}
}
}
}
}
parameters {
parameters {
key: "exclude_splits"
value {
field_value {
string_value: "[]"
}
}
}
}
upstream_nodes: "CsvExampleGen"
downstream_nodes: "ExampleValidator"
execution_options {
caching_options {
}
}
INFO:absl:MetadataStore with DB connection initialized
I1205 11:10:12.827589 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
INFO:absl:MetadataStore with DB connection initialized
INFO:absl:Going to run a new execution 3
INFO:absl:Going to run a new execution: ExecutionInfo(execution_id=3, input_dict={'examples': [Artifact(artifact: id: 1
type_id: 15
uri: "pipelines/penguin-tfdv/CsvExampleGen/examples/1"
properties {
key: "split_names"
value {
string_value: "[\"train\", \"eval\"]"
}
}
custom_properties {
key: "file_format"
value {
string_value: "tfrecords_gzip"
}
}
custom_properties {
key: "input_fingerprint"
value {
string_value: "split:single_split,num_files:1,total_bytes:25648,xor_checksum:1638702606,sum_checksum:1638702606"
}
}
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv:2021-12-05T11:10:11.667239:CsvExampleGen:examples:0"
}
}
custom_properties {
key: "payload_format"
value {
string_value: "FORMAT_TF_EXAMPLE"
}
}
custom_properties {
key: "span"
value {
int_value: 0
}
}
custom_properties {
key: "tfx_version"
value {
string_value: "1.4.0"
}
}
state: LIVE
create_time_since_epoch: 1638702612780
last_update_time_since_epoch: 1638702612780
, artifact_type: id: 15
name: "Examples"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
properties {
key: "version"
value: INT
}
)]}, output_dict=defaultdict(<class 'list'>, {'statistics': [Artifact(artifact: uri: "pipelines/penguin-tfdv/StatisticsGen/statistics/3"
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv:2021-12-05T11:10:11.667239:StatisticsGen:statistics:0"
}
}
, artifact_type: name: "ExampleStatistics"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
)]}), exec_properties={'exclude_splits': '[]'}, execution_output_uri='pipelines/penguin-tfdv/StatisticsGen/.system/executor_execution/3/executor_output.pb', stateful_working_dir='pipelines/penguin-tfdv/StatisticsGen/.system/stateful_working_dir/2021-12-05T11:10:11.667239', tmp_dir='pipelines/penguin-tfdv/StatisticsGen/.system/executor_execution/3/.temp/', pipeline_node=node_info {
type {
name: "tfx.components.statistics_gen.component.StatisticsGen"
}
id: "StatisticsGen"
}
contexts {
contexts {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
contexts {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
contexts {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.StatisticsGen"
}
}
}
}
inputs {
inputs {
key: "examples"
value {
channels {
producer_node_query {
id: "CsvExampleGen"
}
context_queries {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
context_queries {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
context_queries {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.CsvExampleGen"
}
}
}
artifact_query {
type {
name: "Examples"
}
}
output_key: "examples"
}
min_count: 1
}
}
}
outputs {
outputs {
key: "statistics"
value {
artifact_spec {
type {
name: "ExampleStatistics"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
}
}
}
}
}
parameters {
parameters {
key: "exclude_splits"
value {
field_value {
string_value: "[]"
}
}
}
}
upstream_nodes: "CsvExampleGen"
downstream_nodes: "ExampleValidator"
execution_options {
caching_options {
}
}
, pipeline_info=id: "penguin-tfdv"
, pipeline_run_id='2021-12-05T11:10:11.667239')
INFO:absl:Generating statistics for split train.
INFO:absl:Statistics for split train written to pipelines/penguin-tfdv/StatisticsGen/statistics/3/Split-train.
INFO:absl:Generating statistics for split eval.
INFO:absl:Statistics for split eval written to pipelines/penguin-tfdv/StatisticsGen/statistics/3/Split-eval.
WARNING:root:Make sure that locally built Python SDK docker image has Python 3.7 interpreter.
INFO:absl:Cleaning up stateless execution info.
INFO:absl:Execution 3 succeeded.
INFO:absl:Cleaning up stateful execution info.
INFO:absl:Publishing output artifacts defaultdict(<class 'list'>, {'statistics': [Artifact(artifact: uri: "pipelines/penguin-tfdv/StatisticsGen/statistics/3"
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv:2021-12-05T11:10:11.667239:StatisticsGen:statistics:0"
}
}
custom_properties {
key: "tfx_version"
value {
string_value: "1.4.0"
}
}
, artifact_type: name: "ExampleStatistics"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
)]}) for execution 3
INFO:absl:MetadataStore with DB connection initialized
INFO:absl:Component StatisticsGen is finished.
INFO:absl:Component Trainer is running.
INFO:absl:Running launcher for node_info {
type {
name: "tfx.components.trainer.component.Trainer"
}
id: "Trainer"
}
contexts {
contexts {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
contexts {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
contexts {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.Trainer"
}
}
}
}
inputs {
inputs {
key: "examples"
value {
channels {
producer_node_query {
id: "CsvExampleGen"
}
context_queries {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
context_queries {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
context_queries {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.CsvExampleGen"
}
}
}
artifact_query {
type {
name: "Examples"
}
}
output_key: "examples"
}
min_count: 1
}
}
inputs {
key: "schema"
value {
channels {
producer_node_query {
id: "schema_importer"
}
context_queries {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
context_queries {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
context_queries {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.schema_importer"
}
}
}
artifact_query {
type {
name: "Schema"
}
}
output_key: "result"
}
}
}
}
outputs {
outputs {
key: "model"
value {
artifact_spec {
type {
name: "Model"
}
}
}
}
outputs {
key: "model_run"
value {
artifact_spec {
type {
name: "ModelRun"
}
}
}
}
}
parameters {
parameters {
key: "custom_config"
value {
field_value {
string_value: "null"
}
}
}
parameters {
key: "eval_args"
value {
field_value {
string_value: "{\n \"num_steps\": 5\n}"
}
}
}
parameters {
key: "module_path"
value {
field_value {
string_value: "penguin_trainer@pipelines/penguin-tfdv/_wheels/tfx_user_code_Trainer-0.0+000876a22093ec764e3751d5a3ed939f1b107d1d6ade133f954ea2a767b8dfb2-py3-none-any.whl"
}
}
}
parameters {
key: "train_args"
value {
field_value {
string_value: "{\n \"num_steps\": 100\n}"
}
}
}
}
upstream_nodes: "CsvExampleGen"
upstream_nodes: "schema_importer"
downstream_nodes: "Pusher"
execution_options {
caching_options {
}
}
INFO:absl:MetadataStore with DB connection initialized
I1205 11:10:15.426606 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
INFO:absl:MetadataStore with DB connection initialized
INFO:absl:Going to run a new execution 4
INFO:absl:Going to run a new execution: ExecutionInfo(execution_id=4, input_dict={'examples': [Artifact(artifact: id: 1
type_id: 15
uri: "pipelines/penguin-tfdv/CsvExampleGen/examples/1"
properties {
key: "split_names"
value {
string_value: "[\"train\", \"eval\"]"
}
}
custom_properties {
key: "file_format"
value {
string_value: "tfrecords_gzip"
}
}
custom_properties {
key: "input_fingerprint"
value {
string_value: "split:single_split,num_files:1,total_bytes:25648,xor_checksum:1638702606,sum_checksum:1638702606"
}
}
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv:2021-12-05T11:10:11.667239:CsvExampleGen:examples:0"
}
}
custom_properties {
key: "payload_format"
value {
string_value: "FORMAT_TF_EXAMPLE"
}
}
custom_properties {
key: "span"
value {
int_value: 0
}
}
custom_properties {
key: "tfx_version"
value {
string_value: "1.4.0"
}
}
state: LIVE
create_time_since_epoch: 1638702612780
last_update_time_since_epoch: 1638702612780
, artifact_type: id: 15
name: "Examples"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
properties {
key: "version"
value: INT
}
)], 'schema': [Artifact(artifact: id: 2
type_id: 17
uri: "schema"
custom_properties {
key: "tfx_version"
value {
string_value: "1.4.0"
}
}
state: LIVE
create_time_since_epoch: 1638702612810
last_update_time_since_epoch: 1638702612810
, artifact_type: id: 17
name: "Schema"
)]}, output_dict=defaultdict(<class 'list'>, {'model_run': [Artifact(artifact: uri: "pipelines/penguin-tfdv/Trainer/model_run/4"
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv:2021-12-05T11:10:11.667239:Trainer:model_run:0"
}
}
, artifact_type: name: "ModelRun"
)], 'model': [Artifact(artifact: uri: "pipelines/penguin-tfdv/Trainer/model/4"
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv:2021-12-05T11:10:11.667239:Trainer:model:0"
}
}
, artifact_type: name: "Model"
)]}), exec_properties={'eval_args': '{\n "num_steps": 5\n}', 'module_path': 'penguin_trainer@pipelines/penguin-tfdv/_wheels/tfx_user_code_Trainer-0.0+000876a22093ec764e3751d5a3ed939f1b107d1d6ade133f954ea2a767b8dfb2-py3-none-any.whl', 'custom_config': 'null', 'train_args': '{\n "num_steps": 100\n}'}, execution_output_uri='pipelines/penguin-tfdv/Trainer/.system/executor_execution/4/executor_output.pb', stateful_working_dir='pipelines/penguin-tfdv/Trainer/.system/stateful_working_dir/2021-12-05T11:10:11.667239', tmp_dir='pipelines/penguin-tfdv/Trainer/.system/executor_execution/4/.temp/', pipeline_node=node_info {
type {
name: "tfx.components.trainer.component.Trainer"
}
id: "Trainer"
}
contexts {
contexts {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
contexts {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
contexts {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.Trainer"
}
}
}
}
inputs {
inputs {
key: "examples"
value {
channels {
producer_node_query {
id: "CsvExampleGen"
}
context_queries {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
context_queries {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
context_queries {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.CsvExampleGen"
}
}
}
artifact_query {
type {
name: "Examples"
}
}
output_key: "examples"
}
min_count: 1
}
}
inputs {
key: "schema"
value {
channels {
producer_node_query {
id: "schema_importer"
}
context_queries {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
context_queries {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
context_queries {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.schema_importer"
}
}
}
artifact_query {
type {
name: "Schema"
}
}
output_key: "result"
}
}
}
}
outputs {
outputs {
key: "model"
value {
artifact_spec {
type {
name: "Model"
}
}
}
}
outputs {
key: "model_run"
value {
artifact_spec {
type {
name: "ModelRun"
}
}
}
}
}
parameters {
parameters {
key: "custom_config"
value {
field_value {
string_value: "null"
}
}
}
parameters {
key: "eval_args"
value {
field_value {
string_value: "{\n \"num_steps\": 5\n}"
}
}
}
parameters {
key: "module_path"
value {
field_value {
string_value: "penguin_trainer@pipelines/penguin-tfdv/_wheels/tfx_user_code_Trainer-0.0+000876a22093ec764e3751d5a3ed939f1b107d1d6ade133f954ea2a767b8dfb2-py3-none-any.whl"
}
}
}
parameters {
key: "train_args"
value {
field_value {
string_value: "{\n \"num_steps\": 100\n}"
}
}
}
}
upstream_nodes: "CsvExampleGen"
upstream_nodes: "schema_importer"
downstream_nodes: "Pusher"
execution_options {
caching_options {
}
}
, pipeline_info=id: "penguin-tfdv"
, pipeline_run_id='2021-12-05T11:10:11.667239')
INFO:absl:Train on the 'train' split when train_args.splits is not set.
INFO:absl:Evaluate on the 'eval' split when eval_args.splits is not set.
INFO:absl:udf_utils.get_fn {'eval_args': '{\n "num_steps": 5\n}', 'module_path': 'penguin_trainer@pipelines/penguin-tfdv/_wheels/tfx_user_code_Trainer-0.0+000876a22093ec764e3751d5a3ed939f1b107d1d6ade133f954ea2a767b8dfb2-py3-none-any.whl', 'custom_config': 'null', 'train_args': '{\n "num_steps": 100\n}'} 'run_fn'
INFO:absl:Installing 'pipelines/penguin-tfdv/_wheels/tfx_user_code_Trainer-0.0+000876a22093ec764e3751d5a3ed939f1b107d1d6ade133f954ea2a767b8dfb2-py3-none-any.whl' to a temporary directory.
INFO:absl:Executing: ['/tmpfs/src/tf_docs_env/bin/python', '-m', 'pip', 'install', '--target', '/tmp/tmpbb1l9_v7', 'pipelines/penguin-tfdv/_wheels/tfx_user_code_Trainer-0.0+000876a22093ec764e3751d5a3ed939f1b107d1d6ade133f954ea2a767b8dfb2-py3-none-any.whl']
Processing ./pipelines/penguin-tfdv/_wheels/tfx_user_code_Trainer-0.0+000876a22093ec764e3751d5a3ed939f1b107d1d6ade133f954ea2a767b8dfb2-py3-none-any.whl
INFO:absl:Successfully installed 'pipelines/penguin-tfdv/_wheels/tfx_user_code_Trainer-0.0+000876a22093ec764e3751d5a3ed939f1b107d1d6ade133f954ea2a767b8dfb2-py3-none-any.whl'.
INFO:absl:Training model.
INFO:absl:Feature body_mass_g has a shape dim {
size: 1
}
. Setting to DenseTensor.
INFO:absl:Feature culmen_depth_mm has a shape dim {
size: 1
}
. Setting to DenseTensor.
INFO:absl:Feature culmen_length_mm has a shape dim {
size: 1
}
. Setting to DenseTensor.
INFO:absl:Feature flipper_length_mm has a shape dim {
size: 1
}
. Setting to DenseTensor.
INFO:absl:Feature species has a shape dim {
size: 1
}
. Setting to DenseTensor.
Installing collected packages: tfx-user-code-Trainer
Successfully installed tfx-user-code-Trainer-0.0+000876a22093ec764e3751d5a3ed939f1b107d1d6ade133f954ea2a767b8dfb2
INFO:absl:Feature body_mass_g has a shape dim {
size: 1
}
. Setting to DenseTensor.
INFO:absl:Feature culmen_depth_mm has a shape dim {
size: 1
}
. Setting to DenseTensor.
INFO:absl:Feature culmen_length_mm has a shape dim {
size: 1
}
. Setting to DenseTensor.
INFO:absl:Feature flipper_length_mm has a shape dim {
size: 1
}
. Setting to DenseTensor.
INFO:absl:Feature species has a shape dim {
size: 1
}
. Setting to DenseTensor.
INFO:absl:Feature body_mass_g has a shape dim {
size: 1
}
. Setting to DenseTensor.
INFO:absl:Feature culmen_depth_mm has a shape dim {
size: 1
}
. Setting to DenseTensor.
INFO:absl:Feature culmen_length_mm has a shape dim {
size: 1
}
. Setting to DenseTensor.
INFO:absl:Feature flipper_length_mm has a shape dim {
size: 1
}
. Setting to DenseTensor.
INFO:absl:Feature species has a shape dim {
size: 1
}
. Setting to DenseTensor.
INFO:absl:Feature body_mass_g has a shape dim {
size: 1
}
. Setting to DenseTensor.
INFO:absl:Feature culmen_depth_mm has a shape dim {
size: 1
}
. Setting to DenseTensor.
INFO:absl:Feature culmen_length_mm has a shape dim {
size: 1
}
. Setting to DenseTensor.
INFO:absl:Feature flipper_length_mm has a shape dim {
size: 1
}
. Setting to DenseTensor.
INFO:absl:Feature species has a shape dim {
size: 1
}
. Setting to DenseTensor.
INFO:absl:Model: "model"
INFO:absl:__________________________________________________________________________________________________
INFO:absl:Layer (type) Output Shape Param # Connected to
INFO:absl:==================================================================================================
INFO:absl:body_mass_g (InputLayer) [(None, 1)] 0
INFO:absl:__________________________________________________________________________________________________
INFO:absl:culmen_depth_mm (InputLayer) [(None, 1)] 0
INFO:absl:__________________________________________________________________________________________________
INFO:absl:culmen_length_mm (InputLayer) [(None, 1)] 0
INFO:absl:__________________________________________________________________________________________________
INFO:absl:flipper_length_mm (InputLayer) [(None, 1)] 0
INFO:absl:__________________________________________________________________________________________________
INFO:absl:concatenate (Concatenate) (None, 4) 0 body_mass_g[0][0]
INFO:absl: culmen_depth_mm[0][0]
INFO:absl: culmen_length_mm[0][0]
INFO:absl: flipper_length_mm[0][0]
INFO:absl:__________________________________________________________________________________________________
INFO:absl:dense (Dense) (None, 8) 40 concatenate[0][0]
INFO:absl:__________________________________________________________________________________________________
INFO:absl:dense_1 (Dense) (None, 8) 72 dense[0][0]
INFO:absl:__________________________________________________________________________________________________
INFO:absl:dense_2 (Dense) (None, 3) 27 dense_1[0][0]
INFO:absl:==================================================================================================
INFO:absl:Total params: 139
INFO:absl:Trainable params: 139
INFO:absl:Non-trainable params: 0
INFO:absl:__________________________________________________________________________________________________
100/100 [==============================] - 1s 3ms/step - loss: 0.5752 - sparse_categorical_accuracy: 0.8165 - val_loss: 0.2294 - val_sparse_categorical_accuracy: 0.9400
2021-12-05 11:10:20.208161: W tensorflow/python/util/util.cc:348] Sets are not currently considered sequences, but this may change in the future, so consider avoiding using them.
INFO:tensorflow:Assets written to: pipelines/penguin-tfdv/Trainer/model/4/Format-Serving/assets
INFO:tensorflow:Assets written to: pipelines/penguin-tfdv/Trainer/model/4/Format-Serving/assets
INFO:absl:Training complete. Model written to pipelines/penguin-tfdv/Trainer/model/4/Format-Serving. ModelRun written to pipelines/penguin-tfdv/Trainer/model_run/4
INFO:absl:Cleaning up stateless execution info.
INFO:absl:Execution 4 succeeded.
INFO:absl:Cleaning up stateful execution info.
INFO:absl:Publishing output artifacts defaultdict(<class 'list'>, {'model_run': [Artifact(artifact: uri: "pipelines/penguin-tfdv/Trainer/model_run/4"
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv:2021-12-05T11:10:11.667239:Trainer:model_run:0"
}
}
custom_properties {
key: "tfx_version"
value {
string_value: "1.4.0"
}
}
, artifact_type: name: "ModelRun"
)], 'model': [Artifact(artifact: uri: "pipelines/penguin-tfdv/Trainer/model/4"
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv:2021-12-05T11:10:11.667239:Trainer:model:0"
}
}
custom_properties {
key: "tfx_version"
value {
string_value: "1.4.0"
}
}
, artifact_type: name: "Model"
)]}) for execution 4
INFO:absl:MetadataStore with DB connection initialized
INFO:absl:Component Trainer is finished.
I1205 11:10:20.766410 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
I1205 11:10:20.770478 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
INFO:absl:Component ExampleValidator is running.
INFO:absl:Running launcher for node_info {
type {
name: "tfx.components.example_validator.component.ExampleValidator"
}
id: "ExampleValidator"
}
contexts {
contexts {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
contexts {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
contexts {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.ExampleValidator"
}
}
}
}
inputs {
inputs {
key: "schema"
value {
channels {
producer_node_query {
id: "schema_importer"
}
context_queries {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
context_queries {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
context_queries {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.schema_importer"
}
}
}
artifact_query {
type {
name: "Schema"
}
}
output_key: "result"
}
min_count: 1
}
}
inputs {
key: "statistics"
value {
channels {
producer_node_query {
id: "StatisticsGen"
}
context_queries {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
context_queries {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
context_queries {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.StatisticsGen"
}
}
}
artifact_query {
type {
name: "ExampleStatistics"
}
}
output_key: "statistics"
}
min_count: 1
}
}
}
outputs {
outputs {
key: "anomalies"
value {
artifact_spec {
type {
name: "ExampleAnomalies"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
}
}
}
}
}
parameters {
parameters {
key: "exclude_splits"
value {
field_value {
string_value: "[]"
}
}
}
}
upstream_nodes: "StatisticsGen"
upstream_nodes: "schema_importer"
execution_options {
caching_options {
}
}
INFO:absl:MetadataStore with DB connection initialized
I1205 11:10:20.793696 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
INFO:absl:MetadataStore with DB connection initialized
INFO:absl:Going to run a new execution 5
INFO:absl:Going to run a new execution: ExecutionInfo(execution_id=5, input_dict={'statistics': [Artifact(artifact: id: 3
type_id: 19
uri: "pipelines/penguin-tfdv/StatisticsGen/statistics/3"
properties {
key: "split_names"
value {
string_value: "[\"train\", \"eval\"]"
}
}
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv:2021-12-05T11:10:11.667239:StatisticsGen:statistics:0"
}
}
custom_properties {
key: "tfx_version"
value {
string_value: "1.4.0"
}
}
state: LIVE
create_time_since_epoch: 1638702615406
last_update_time_since_epoch: 1638702615406
, artifact_type: id: 19
name: "ExampleStatistics"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
)], 'schema': [Artifact(artifact: id: 2
type_id: 17
uri: "schema"
custom_properties {
key: "tfx_version"
value {
string_value: "1.4.0"
}
}
state: LIVE
create_time_since_epoch: 1638702612810
last_update_time_since_epoch: 1638702612810
, artifact_type: id: 17
name: "Schema"
)]}, output_dict=defaultdict(<class 'list'>, {'anomalies': [Artifact(artifact: uri: "pipelines/penguin-tfdv/ExampleValidator/anomalies/5"
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv:2021-12-05T11:10:11.667239:ExampleValidator:anomalies:0"
}
}
, artifact_type: name: "ExampleAnomalies"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
)]}), exec_properties={'exclude_splits': '[]'}, execution_output_uri='pipelines/penguin-tfdv/ExampleValidator/.system/executor_execution/5/executor_output.pb', stateful_working_dir='pipelines/penguin-tfdv/ExampleValidator/.system/stateful_working_dir/2021-12-05T11:10:11.667239', tmp_dir='pipelines/penguin-tfdv/ExampleValidator/.system/executor_execution/5/.temp/', pipeline_node=node_info {
type {
name: "tfx.components.example_validator.component.ExampleValidator"
}
id: "ExampleValidator"
}
contexts {
contexts {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
contexts {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
contexts {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.ExampleValidator"
}
}
}
}
inputs {
inputs {
key: "schema"
value {
channels {
producer_node_query {
id: "schema_importer"
}
context_queries {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
context_queries {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
context_queries {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.schema_importer"
}
}
}
artifact_query {
type {
name: "Schema"
}
}
output_key: "result"
}
min_count: 1
}
}
inputs {
key: "statistics"
value {
channels {
producer_node_query {
id: "StatisticsGen"
}
context_queries {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
context_queries {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
context_queries {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.StatisticsGen"
}
}
}
artifact_query {
type {
name: "ExampleStatistics"
}
}
output_key: "statistics"
}
min_count: 1
}
}
}
outputs {
outputs {
key: "anomalies"
value {
artifact_spec {
type {
name: "ExampleAnomalies"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
}
}
}
}
}
parameters {
parameters {
key: "exclude_splits"
value {
field_value {
string_value: "[]"
}
}
}
}
upstream_nodes: "StatisticsGen"
upstream_nodes: "schema_importer"
execution_options {
caching_options {
}
}
, pipeline_info=id: "penguin-tfdv"
, pipeline_run_id='2021-12-05T11:10:11.667239')
INFO:absl:Validating schema against the computed statistics for split train.
INFO:absl:Validation complete for split train. Anomalies written to pipelines/penguin-tfdv/ExampleValidator/anomalies/5/Split-train.
INFO:absl:Validating schema against the computed statistics for split eval.
INFO:absl:Validation complete for split eval. Anomalies written to pipelines/penguin-tfdv/ExampleValidator/anomalies/5/Split-eval.
INFO:absl:Cleaning up stateless execution info.
INFO:absl:Execution 5 succeeded.
INFO:absl:Cleaning up stateful execution info.
INFO:absl:Publishing output artifacts defaultdict(<class 'list'>, {'anomalies': [Artifact(artifact: uri: "pipelines/penguin-tfdv/ExampleValidator/anomalies/5"
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv:2021-12-05T11:10:11.667239:ExampleValidator:anomalies:0"
}
}
custom_properties {
key: "tfx_version"
value {
string_value: "1.4.0"
}
}
, artifact_type: name: "ExampleAnomalies"
properties {
key: "span"
value: INT
}
properties {
key: "split_names"
value: STRING
}
)]}) for execution 5
INFO:absl:MetadataStore with DB connection initialized
INFO:absl:Component ExampleValidator is finished.
INFO:absl:Component Pusher is running.
INFO:absl:Running launcher for node_info {
type {
name: "tfx.components.pusher.component.Pusher"
}
id: "Pusher"
}
contexts {
contexts {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
contexts {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
contexts {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.Pusher"
}
}
}
}
inputs {
inputs {
key: "model"
value {
channels {
producer_node_query {
id: "Trainer"
}
context_queries {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
context_queries {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
context_queries {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.Trainer"
}
}
}
artifact_query {
type {
name: "Model"
}
}
output_key: "model"
}
}
}
}
outputs {
outputs {
key: "pushed_model"
value {
artifact_spec {
type {
name: "PushedModel"
}
}
}
}
}
parameters {
parameters {
key: "custom_config"
value {
field_value {
string_value: "null"
}
}
}
parameters {
key: "push_destination"
value {
field_value {
string_value: "{\n \"filesystem\": {\n \"base_directory\": \"serving_model/penguin-tfdv\"\n }\n}"
}
}
}
}
upstream_nodes: "Trainer"
execution_options {
caching_options {
}
}
INFO:absl:MetadataStore with DB connection initialized
INFO:absl:MetadataStore with DB connection initialized
I1205 11:10:20.848567 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
INFO:absl:Going to run a new execution 6
INFO:absl:Going to run a new execution: ExecutionInfo(execution_id=6, input_dict={'model': [Artifact(artifact: id: 5
type_id: 22
uri: "pipelines/penguin-tfdv/Trainer/model/4"
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv:2021-12-05T11:10:11.667239:Trainer:model:0"
}
}
custom_properties {
key: "tfx_version"
value {
string_value: "1.4.0"
}
}
state: LIVE
create_time_since_epoch: 1638702620774
last_update_time_since_epoch: 1638702620774
, artifact_type: id: 22
name: "Model"
)]}, output_dict=defaultdict(<class 'list'>, {'pushed_model': [Artifact(artifact: uri: "pipelines/penguin-tfdv/Pusher/pushed_model/6"
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv:2021-12-05T11:10:11.667239:Pusher:pushed_model:0"
}
}
, artifact_type: name: "PushedModel"
)]}), exec_properties={'push_destination': '{\n "filesystem": {\n "base_directory": "serving_model/penguin-tfdv"\n }\n}', 'custom_config': 'null'}, execution_output_uri='pipelines/penguin-tfdv/Pusher/.system/executor_execution/6/executor_output.pb', stateful_working_dir='pipelines/penguin-tfdv/Pusher/.system/stateful_working_dir/2021-12-05T11:10:11.667239', tmp_dir='pipelines/penguin-tfdv/Pusher/.system/executor_execution/6/.temp/', pipeline_node=node_info {
type {
name: "tfx.components.pusher.component.Pusher"
}
id: "Pusher"
}
contexts {
contexts {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
contexts {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
contexts {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.Pusher"
}
}
}
}
inputs {
inputs {
key: "model"
value {
channels {
producer_node_query {
id: "Trainer"
}
context_queries {
type {
name: "pipeline"
}
name {
field_value {
string_value: "penguin-tfdv"
}
}
}
context_queries {
type {
name: "pipeline_run"
}
name {
field_value {
string_value: "2021-12-05T11:10:11.667239"
}
}
}
context_queries {
type {
name: "node"
}
name {
field_value {
string_value: "penguin-tfdv.Trainer"
}
}
}
artifact_query {
type {
name: "Model"
}
}
output_key: "model"
}
}
}
}
outputs {
outputs {
key: "pushed_model"
value {
artifact_spec {
type {
name: "PushedModel"
}
}
}
}
}
parameters {
parameters {
key: "custom_config"
value {
field_value {
string_value: "null"
}
}
}
parameters {
key: "push_destination"
value {
field_value {
string_value: "{\n \"filesystem\": {\n \"base_directory\": \"serving_model/penguin-tfdv\"\n }\n}"
}
}
}
}
upstream_nodes: "Trainer"
execution_options {
caching_options {
}
}
, pipeline_info=id: "penguin-tfdv"
, pipeline_run_id='2021-12-05T11:10:11.667239')
WARNING:absl:Pusher is going to push the model without validation. Consider using Evaluator or InfraValidator in your pipeline.
INFO:absl:Model version: 1638702620
INFO:absl:Model written to serving path serving_model/penguin-tfdv/1638702620.
INFO:absl:Model pushed to pipelines/penguin-tfdv/Pusher/pushed_model/6.
INFO:absl:Cleaning up stateless execution info.
INFO:absl:Execution 6 succeeded.
INFO:absl:Cleaning up stateful execution info.
INFO:absl:Publishing output artifacts defaultdict(<class 'list'>, {'pushed_model': [Artifact(artifact: uri: "pipelines/penguin-tfdv/Pusher/pushed_model/6"
custom_properties {
key: "name"
value {
string_value: "penguin-tfdv:2021-12-05T11:10:11.667239:Pusher:pushed_model:0"
}
}
custom_properties {
key: "tfx_version"
value {
string_value: "1.4.0"
}
}
, artifact_type: name: "PushedModel"
)]}) for execution 6
INFO:absl:MetadataStore with DB connection initialized
I1205 11:10:20.879335 4006 rdbms_metadata_access_object.cc:686] No property is defined for the Type
INFO:absl:Component Pusher is finished.
「INFO：absl：ComponentPusherが終了しました」と表示されます。パイプラインが正常に終了した場合。
パイプラインの出力を調べます
ペンギンの分類モデルをトレーニングし、ExampleValidatorコンポーネントの入力例も検証しました。前のパイプラインで行ったように、ExampleValidatorからの出力を分析できます。
metadata_connection_config = tfx.orchestration.metadata.sqlite_metadata_connection_config(
METADATA_PATH)
with Metadata(metadata_connection_config) as metadata_handler:
ev_output = get_latest_artifacts(metadata_handler, PIPELINE_NAME,
'ExampleValidator')
anomalies_artifacts = ev_output[standard_component_specs.ANOMALIES_KEY]
INFO:absl:MetadataStore with DB connection initialized
ExampleValidatorからのExampleAnomaliesも視覚化できます。
visualize_artifacts(anomalies_artifacts)
例の分割ごとに「異常は見つかりませんでした」と表示されます。このパイプラインでスキーマ生成に使用されたものと同じデータを使用したため、ここでは異常は予想されません。このパイプラインを新しい受信データで繰り返し実行する場合、ExampleValidatorは、新しいデータと既存のスキーマの間の不一致を見つけることができるはずです。
異常が見つかった場合は、データを確認して、想定に従わない例があるかどうかを確認できます。 StatisticsGenなどの他のコンポーネントからの出力が役立つ場合があります。ただし、検出された異常は、それ以上のパイプラインの実行をブロックしません。
次のステップ
あなたは上でより多くのリソースを見つけることができますhttps://www.tensorflow.org/tfx/tutorials
参照してくださいTFXパイプラインが理解TFXの様々な概念についての詳細を学ぶために。
