Juros do cartão de crédito

Vamos imaginar que você gostaria de estimar a taxa de juros do seu cartão de crédito daqui a um ano. Suponha que a taxa básica atual seja de 2% e sua empresa de cartão de crédito cobra 10% mais a taxa básica. Dada a força da economia atual, você acredita que é mais provável que o Federal Reserve aumente as taxas de juros do que não. O Fed se reunirá oito vezes nos próximos doze meses e aumentará a taxa de fundos federais em 0,25% ou a deixará no nível anterior.

Usamos a distribuição binomial para modelar a taxa de juros do seu cartão de crédito ao final do período de doze meses. Especificamente, usaremos a classe de distribuição TensorFlow Probability Binomial com os seguintes parâmetros: total_count = 8 (número de tentativas ou reuniões), probs = {.6, .7, .8, .9}, para nosso intervalo de estimativas sobre a probabilidade de o Fed aumentar a taxa de fundos federais em 0,25% em cada reunião.

Dependências e pré-requisitos

Configurações de instalação de probabilidade do TensorFlow

TFP_Installation = "Stable TFP"

if TFP_Installation == "Most Recent TFP":

!pip install -q tfp-nightly

print("Most recent TFP version installed")
elif TFP_Installation == "Stable TFP":

!pip install -q --upgrade tensorflow-probability

print("Up-to-date, stable  TFP version installed")
elif TFP_Installation == "Stable TFP-GPU":

!pip install -q --upgrade tensorflow-probability-gpu

print("Up-to-date, stable TFP-GPU version installed")

print("(make sure GPU is properly configured)")
elif TFP_Installation == "Most Recent TFP-GPU":

!pip install -q tfp-nightly-gpu

print("Most recent TFP-GPU version installed")

print("(make sure GPU is properly configured)")
elif TFP_Installation == "TFP Already Installed":

print("TFP already installed in this environment")

pass
else:

print("Installation Error: Please select a viable TFP installation option.")

Importações e variáveis ​​globais (certifique-se de executar esta célula)

from __future__ import absolute_import, division, print_function

warning_status
= "ignore"
import warnings
warnings
.filterwarnings(warning_status)
with warnings.catch_warnings():
    warnings
.filterwarnings(warning_status, category=DeprecationWarning)
    warnings
.filterwarnings(warning_status, category=UserWarning)

import numpy as np
import os
matplotlib_style
= 'fivethirtyeight'
import matplotlib.pyplot as plt; plt.style.use(matplotlib_style)
import matplotlib.axes as axes;
from matplotlib.patches import Ellipse
%matplotlib inline
import seaborn as sns; sns.set_context('notebook')
notebook_screen_res
= 'png'
%config InlineBackend.figure_format = notebook_screen_res

import tensorflow as tf

# Eager Execution
use_tf_eager
= True


# Use try/except so we can easily re-execute the whole notebook.
if use_tf_eager:

try:
    tf
.compat.v1.enable_eager_execution()

except:
    reset_session
()


import tensorflow_probability as tfp
tfd
= tfp.distributions
tfb
= tfp.bijectors


def default_session_options(enable_gpu_ram_resizing=True,
                            enable_xla
=False):

"""Creates default options for Graph-mode session."""
  config
= tf.ConfigProto()
  config
.log_device_placement = True

if enable_gpu_ram_resizing:

# `allow_growth=True` makes it possible to connect multiple

# colabs to your GPU. Otherwise the colab malloc's all GPU ram.
    config
.gpu_options.allow_growth = True

if enable_xla:

# Enable on XLA. https://www.tensorflow.org/performance/xla/.
    config
.graph_options.optimizer_options.global_jit_level = (
        tf
.OptimizerOptions.ON_1)

return config


def reset_session(options=None):

"""Creates a new global, interactive session in Graph-mode."""

if tf.executing_eagerly():

return

global sess

try:
    tf
.reset_default_graph()
    sess
.close()

except:

pass

if options is None:
    options
= default_session_options()
  sess
= tf.InteractiveSession(config=options)


def evaluate(tensors):

"""Evaluates Tensor or EagerTensor to Numpy `ndarray`s.
  Args:
  tensors: Object of `Tensor` or EagerTensor`s; can be `list`, `tuple`,
    `namedtuple` or combinations thereof.

  Returns:
    ndarrays: Object with same structure as `tensors` except with `Tensor` or
      `EagerTensor`s replaced by Numpy `ndarray`s.
  """


if tf.executing_eagerly():

return tf.contrib.framework.nest.pack_sequence_as(
        tensors
,

[t.numpy() if tf.contrib.framework.is_tensor(t) else t

for t in tf.contrib.framework.nest.flatten(tensors)])

return sess.run(tensors)


class _TFColor(object):

"""Enum of colors used in TF docs."""
  red
= '#F15854'
  blue
= '#5DA5DA'
  orange
= '#FAA43A'
  green
= '#60BD68'
  pink
= '#F17CB0'
  brown
= '#B2912F'
  purple
= '#B276B2'
  yellow
= '#DECF3F'
  gray
= '#4D4D4D'

def __getitem__(self, i):

return [

self.red,

self.orange,

self.green,

self.blue,

self.pink,

self.brown,

self.purple,

self.yellow,

self.gray,

][i % 9]
TFColor = _TFColor()

Calcular probabilidades

Calcule as probabilidades de possíveis taxas de juros do cartão de crédito em 12 meses.

# First we encode our assumptions.
num_times_fed_meets_per_year
= 8.
possible_fed_increases
= tf.range(
    start
=0.,
    limit
=num_times_fed_meets_per_year + 1)
possible_cc_interest_rates
= 2. + 10. + 0.25 * possible_fed_increases
prob_fed_raises_rates
= tf.constant([0.6, 0.7, 0.8, 0.9])  # Wild guesses.

# Now we use TFP to compute probabilities in a vectorized manner.
# Pad a dim so we broadcast fed probs against CC interest rates.
prob_fed_raises_rates
= prob_fed_raises_rates[..., tf.newaxis]
prob_cc_interest_rate
= tfd.Binomial(
    total_count
=num_times_fed_meets_per_year,
    probs
=prob_fed_raises_rates).prob(possible_fed_increases)

Executar código TF

# Convert from TF to numpy.
[
    possible_cc_interest_rates_
,
    prob_cc_interest_rate_
,
    prob_fed_raises_rates_
,
] = evaluate([
    possible_cc_interest_rates
,
    prob_cc_interest_rate
,
    prob_fed_raises_rates
,
])

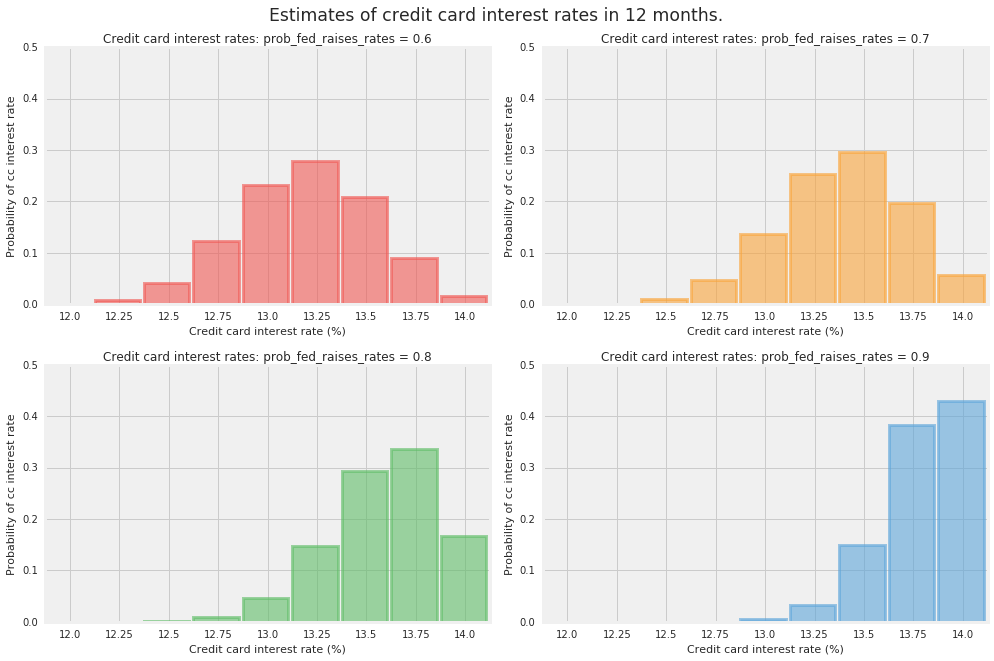

Visualizar resultados

plt.figure(figsize=(14, 9))
for i, pf in enumerate(prob_fed_raises_rates_):
  plt
.subplot(2, 2, i+1)
  plt
.bar(possible_cc_interest_rates_,
          prob_cc_interest_rate_
[i],
          color
=TFColor[i],
          width
=0.23,
          label
="$p = {:.1f}$".format(pf[0]),
          alpha
=0.6,
          edgecolor
=TFColor[i],
          lw
="3")
  plt
.xticks(possible_cc_interest_rates_ + 0.125, possible_cc_interest_rates_)
  plt
.xlim(12, 14.25)
  plt
.ylim(0, 0.5)
  plt
.ylabel("Probability of cc interest rate")
  plt
.xlabel("Credit card interest rate (%)")
  plt
.title("Credit card interest rates: "

"prob_fed_raises_rates = {:.1f}".format(pf[0]));
  plt
.suptitle("Estimates of credit card interest rates in 12 months.",
               fontsize
="x-large",
               y
=1.02)
  plt
.tight_layout()

png
