TensorFlow Lite를 사용한 온디바이스 훈련

import matplotlib.pyplot as plt
import numpy as np
import tensorflow as tf

print("TensorFlow version:", tf.__version__)

TensorFlow version: 2.8.0

IMG_SIZE = 28

class Model(tf.Module):

  def __init__(self):
    self.model = tf.keras.Sequential([
        tf.keras.layers.Flatten(input_shape=(IMG_SIZE, IMG_SIZE), name='flatten'),
        tf.keras.layers.Dense(128, activation='relu', name='dense_1'),
        tf.keras.layers.Dense(10, name='dense_2')
    ])

    self.model.compile(
        optimizer='sgd',
        loss=tf.keras.losses.CategoricalCrossentropy(from_logits=True))

  # The `train` function takes a batch of input images and labels.
  @tf.function(input_signature=[
      tf.TensorSpec([None, IMG_SIZE, IMG_SIZE], tf.float32),
      tf.TensorSpec([None, 10], tf.float32),
  ])
  def train(self, x, y):
    with tf.GradientTape() as tape:
      prediction = self.model(x)
      loss = self.model.loss(y, prediction)
    gradients = tape.gradient(loss, self.model.trainable_variables)
    self.model.optimizer.apply_gradients(
        zip(gradients, self.model.trainable_variables))
    result = {"loss": loss}
    return result

  @tf.function(input_signature=[
      tf.TensorSpec([None, IMG_SIZE, IMG_SIZE], tf.float32),
  ])
  def infer(self, x):
    logits = self.model(x)
    probabilities = tf.nn.softmax(logits, axis=-1)
    return {
        "output": probabilities,
        "logits": logits
    }

  @tf.function(input_signature=[tf.TensorSpec(shape=[], dtype=tf.string)])
  def save(self, checkpoint_path):
    tensor_names = [weight.name for weight in self.model.weights]
    tensors_to_save = [weight.read_value() for weight in self.model.weights]
    tf.raw_ops.Save(
        filename=checkpoint_path, tensor_names=tensor_names,
        data=tensors_to_save, name='save')
    return {
        "checkpoint_path": checkpoint_path
    }

  @tf.function(input_signature=[tf.TensorSpec(shape=[], dtype=tf.string)])
  def restore(self, checkpoint_path):
    restored_tensors = {}
    for var in self.model.weights:
      restored = tf.raw_ops.Restore(
          file_pattern=checkpoint_path, tensor_name=var.name, dt=var.dtype,
          name='restore')
      var.assign(restored)
      restored_tensors[var.name] = restored
    return restored_tensors

fashion_mnist = tf.keras.datasets.fashion_mnist
(train_images, train_labels), (test_images, test_labels) = fashion_mnist.load_data()

train_images = (train_images / 255.0).astype(np.float32)
test_images = (test_images / 255.0).astype(np.float32)

train_labels = tf.keras.utils.to_categorical(train_labels)
test_labels = tf.keras.utils.to_categorical(test_labels)

NUM_EPOCHS = 100
BATCH_SIZE = 100
epochs = np.arange(1, NUM_EPOCHS + 1, 1)
losses = np.zeros([NUM_EPOCHS])
m = Model()

train_ds = tf.data.Dataset.from_tensor_slices((train_images, train_labels))
train_ds = train_ds.batch(BATCH_SIZE)

for i in range(NUM_EPOCHS):
  for x,y in train_ds:
    result = m.train(x, y)

  losses[i] = result['loss']
  if (i + 1) % 10 == 0:
    print(f"Finished {i+1} epochs")
    print(f"  loss: {losses[i]:.3f}")

# Save the trained weights to a checkpoint.
m.save('/tmp/model.ckpt')

Finished 10 epochs
  loss: 0.428
Finished 20 epochs
  loss: 0.378
Finished 30 epochs
  loss: 0.344
Finished 40 epochs
  loss: 0.317
Finished 50 epochs
  loss: 0.299
Finished 60 epochs
  loss: 0.283
Finished 70 epochs
  loss: 0.266
Finished 80 epochs
  loss: 0.252
Finished 90 epochs
  loss: 0.240
Finished 100 epochs
  loss: 0.230
{'checkpoint_path': <tf.Tensor: shape=(), dtype=string, numpy=b'/tmp/model.ckpt'>}

plt.plot(epochs, losses, label='Pre-training')
plt.ylim([0, max(plt.ylim())])
plt.xlabel('Epoch')
plt.ylabel('Loss [Cross Entropy]')
plt.legend();

SAVED_MODEL_DIR = "saved_model"

tf.saved_model.save(
    m,
    SAVED_MODEL_DIR,
    signatures={
        'train':
            m.train.get_concrete_function(),
        'infer':
            m.infer.get_concrete_function(),
        'save':
            m.save.get_concrete_function(),
        'restore':
            m.restore.get_concrete_function(),
    })

# Convert the model
converter = tf.lite.TFLiteConverter.from_saved_model(SAVED_MODEL_DIR)
converter.target_spec.supported_ops = [
    tf.lite.OpsSet.TFLITE_BUILTINS,  # enable TensorFlow Lite ops.
    tf.lite.OpsSet.SELECT_TF_OPS  # enable TensorFlow ops.
]
converter.experimental_enable_resource_variables = True
tflite_model = converter.convert()

interpreter = tf.lite.Interpreter(model_content=tflite_model)
interpreter.allocate_tensors()

infer = interpreter.get_signature_runner("infer")

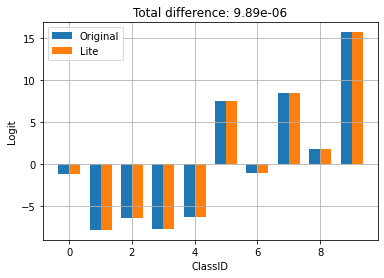

logits_original = m.infer(x=train_images[:1])['logits'][0]
logits_lite = infer(x=train_images[:1])['logits'][0]

try (Interpreter interpreter = new Interpreter(modelBuffer)) {
    int NUM_EPOCHS = 100;
    int BATCH_SIZE = 100;
    int IMG_HEIGHT = 28;
    int IMG_WIDTH = 28;
    int NUM_TRAININGS = 60000;
    int NUM_BATCHES = NUM_TRAININGS / BATCH_SIZE;

    List<FloatBuffer> trainImageBatches = new ArrayList<>(NUM_BATCHES);
    List<FloatBuffer> trainLabelBatches = new ArrayList<>(NUM_BATCHES);

    // Prepare training batches.
    for (int i = 0; i < NUM_BATCHES; ++i) {
        FloatBuffer trainImages = FloatBuffer.allocateDirect(BATCH_SIZE * IMG_HEIGHT * IMG_WIDTH).order(ByteOrder.nativeOrder());
        FloatBuffer trainLabels = FloatBuffer.allocateDirect(BATCH_SIZE * 10).order(ByteOrder.nativeOrder());

        // Fill the data values...
        trainImageBatches.add(trainImages.rewind());
        trainImageLabels.add(trainLabels.rewind());
    }

    // Run training for a few steps.
    float[] losses = new float[NUM_EPOCHS];
    for (int epoch = 0; epoch < NUM_EPOCHS; ++epoch) {
        for (int batchIdx = 0; batchIdx < NUM_BATCHES; ++batchIdx) {
            Map<String, Object> inputs = new HashMap<>();
            inputs.put("x", trainImageBatches.get(batchIdx));
            inputs.put("y", trainLabelBatches.get(batchIdx));

            Map<String, Object> outputs = new HashMap<>();
            FloatBuffer loss = FloatBuffer.allocate(1);
            outputs.put("loss", loss);

            interpreter.runSignature(inputs, outputs, "train");

            // Record the last loss.
            if (batchIdx == NUM_BATCHES - 1) losses[epoch] = loss.get(0);
        }

        // Print the loss output for every 10 epochs.
        if ((epoch + 1) % 10 == 0) {
            System.out.println(
              "Finished " + (epoch + 1) + " epochs, current loss: " + loss.get(0));
        }
    }

    // ...
}

train = interpreter.get_signature_runner("train")

NUM_EPOCHS = 50
BATCH_SIZE = 100
more_epochs = np.arange(epochs[-1]+1, epochs[-1] + NUM_EPOCHS + 1, 1)
more_losses = np.zeros([NUM_EPOCHS])


for i in range(NUM_EPOCHS):
  for x,y in train_ds:
    result = train(x=x, y=y)
  more_losses[i] = result['loss']
  if (i + 1) % 10 == 0:
    print(f"Finished {i+1} epochs")
    print(f"  loss: {more_losses[i]:.3f}")

Finished 10 epochs
  loss: 0.223
Finished 20 epochs
  loss: 0.216
Finished 30 epochs
  loss: 0.210
Finished 40 epochs
  loss: 0.204
Finished 50 epochs
  loss: 0.198

plt.plot(epochs, losses, label='Pre-training')
plt.plot(more_epochs, more_losses, label='On device')
plt.ylim([0, max(plt.ylim())])
plt.xlabel('Epoch')
plt.ylabel('Loss [Cross Entropy]')
plt.legend();

save = interpreter.get_signature_runner("save")

save(checkpoint_path=np.array("/tmp/model.ckpt", dtype=np.string_))

{'checkpoint_path': array(b'/tmp/model.ckpt', dtype=object)}

try (Interpreter interpreter = new Interpreter(modelBuffer)) {
    // Conduct the training jobs.

    // Export the trained weights as a checkpoint file.
    File outputFile = new File(getFilesDir(), "checkpoint.ckpt");
    Map<String, Object> inputs = new HashMap<>();
    inputs.put("checkpoint_path", outputFile.getAbsolutePath());
    Map<String, Object> outputs = new HashMap<>();
    interpreter.runSignature(inputs, outputs, "save");
}

another_interpreter = tf.lite.Interpreter(model_content=tflite_model)
another_interpreter.allocate_tensors()

infer = another_interpreter.get_signature_runner("infer")
restore = another_interpreter.get_signature_runner("restore")

logits_before = infer(x=train_images[:1])['logits'][0]

# Restore the trained weights from /tmp/model.ckpt
restore(checkpoint_path=np.array("/tmp/model.ckpt", dtype=np.string_))

logits_after = infer(x=train_images[:1])['logits'][0]

compare_logits({'Before': logits_before, 'After': logits_after})

try (Interpreter anotherInterpreter = new Interpreter(modelBuffer)) {
    // Load the trained weights from the checkpoint file.
    File outputFile = new File(getFilesDir(), "checkpoint.ckpt");
    Map<String, Object> inputs = new HashMap<>();
    inputs.put("checkpoint_path", outputFile.getAbsolutePath());
    Map<String, Object> outputs = new HashMap<>();
    anotherInterpreter.runSignature(inputs, outputs, "restore");
}

infer = another_interpreter.get_signature_runner("infer")
result = infer(x=test_images)
predictions = np.argmax(result["output"], axis=1)

true_labels = np.argmax(test_labels, axis=1)

result['output'].shape

(10000, 10)

class_names = ['T-shirt/top', 'Trouser', 'Pullover', 'Dress', 'Coat',
               'Sandal', 'Shirt', 'Sneaker', 'Bag', 'Ankle boot']

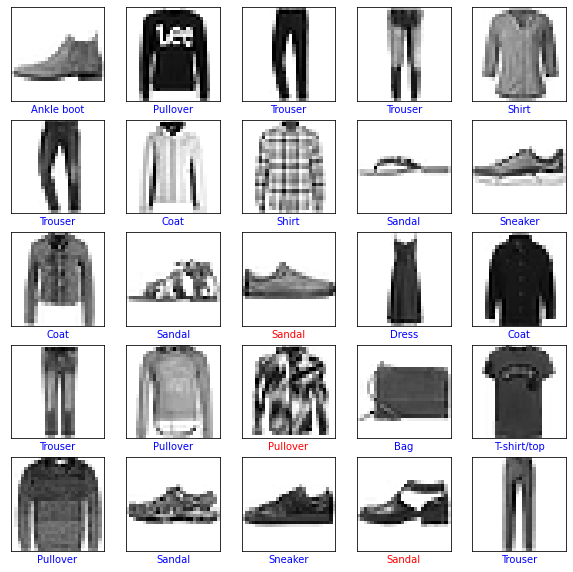

def plot(images, predictions, true_labels):
  plt.figure(figsize=(10,10))
  for i in range(25):
      plt.subplot(5,5,i+1)
      plt.xticks([])
      plt.yticks([])
      plt.grid(False)
      plt.imshow(images[i], cmap=plt.cm.binary)
      color = 'b' if predictions[i] == true_labels[i] else 'r'
      plt.xlabel(class_names[predictions[i]], color=color)
  plt.show()

plot(test_images, predictions, true_labels)

predictions.shape

(10000,)

try (Interpreter anotherInterpreter = new Interpreter(modelBuffer)) {
    // Restore the weights from the checkpoint file.

    int NUM_TESTS = 10;
    FloatBuffer testImages = FloatBuffer.allocateDirect(NUM_TESTS * 28 * 28).order(ByteOrder.nativeOrder());
    FloatBuffer output = FloatBuffer.allocateDirect(NUM_TESTS * 10).order(ByteOrder.nativeOrder());

    // Fill the test data.

    // Run the inference.
    Map<String, Object> inputs = new HashMap<>();
    inputs.put("x", testImages.rewind());
    Map<String, Object> outputs = new HashMap<>();
    outputs.put("output", output);
    anotherInterpreter.runSignature(inputs, outputs, "infer");
    output.rewind();

    // Process the result to get the final category values.
    int[] testLabels = new int[NUM_TESTS];
    for (int i = 0; i < NUM_TESTS; ++i) {
        int index = 0;
        for (int j = 1; j < 10; ++j) {
            if (output.get(i * 10 + index) < output.get(i * 10 + j)) index = testLabels[j];
        }
        testLabels[i] = index;
    }
}
