Esta colab demonstra como:
- Modelos de carga BERT de TensorFlow Hub que foram treinados em diferentes tarefas, incluindo MnlI, escalação, e PubMed
- Use um modelo de pré-processamento correspondente para tokenizar o texto bruto e convertê-lo em ids
- Gere a saída agrupada e sequencial dos ids de entrada do token usando o modelo carregado
- Observe a semelhança semântica das saídas agrupadas de diferentes frases
Nota: Este colab deve ser executado com um tempo de execução de GPU
Configurar e importar
pip3 install --quiet tensorflowpip3 install --quiet tensorflow_text
import seaborn as sns
from sklearn.metrics import pairwise
import tensorflow as tf
import tensorflow_hub as hub
import tensorflow_text as text # Imports TF ops for preprocessing.
Configure o modelo
BERT_MODEL = "https://tfhub.dev/google/experts/bert/wiki_books/2" # @param {type: "string"} ["https://tfhub.dev/google/experts/bert/wiki_books/2", "https://tfhub.dev/google/experts/bert/wiki_books/mnli/2", "https://tfhub.dev/google/experts/bert/wiki_books/qnli/2", "https://tfhub.dev/google/experts/bert/wiki_books/qqp/2", "https://tfhub.dev/google/experts/bert/wiki_books/squad2/2", "https://tfhub.dev/google/experts/bert/wiki_books/sst2/2", "https://tfhub.dev/google/experts/bert/pubmed/2", "https://tfhub.dev/google/experts/bert/pubmed/squad2/2"]
# Preprocessing must match the model, but all the above use the same.
PREPROCESS_MODEL = "https://tfhub.dev/tensorflow/bert_en_uncased_preprocess/3"
Frases
Vamos pegar algumas frases da Wikipedia para percorrer o modelo
sentences = [
"Here We Go Then, You And I is a 1999 album by Norwegian pop artist Morten Abel. It was Abel's second CD as a solo artist.",
"The album went straight to number one on the Norwegian album chart, and sold to double platinum.",
"Among the singles released from the album were the songs \"Be My Lover\" and \"Hard To Stay Awake\".",
"Riccardo Zegna is an Italian jazz musician.",
"Rajko Maksimović is a composer, writer, and music pedagogue.",
"One of the most significant Serbian composers of our time, Maksimović has been and remains active in creating works for different ensembles.",
"Ceylon spinach is a common name for several plants and may refer to: Basella alba Talinum fruticosum",
"A solar eclipse occurs when the Moon passes between Earth and the Sun, thereby totally or partly obscuring the image of the Sun for a viewer on Earth.",
"A partial solar eclipse occurs in the polar regions of the Earth when the center of the Moon's shadow misses the Earth.",
]
Execute o modelo
Vamos carregar o modelo BERT do TF-Hub, tokenizar nossas sentenças usando o modelo de pré-processamento correspondente do TF-Hub e, em seguida, alimentar as frases tokenizadas para o modelo. Para manter esta colab rápida e simples, recomendamos a execução em GPU.
Ir para Runtime → Alterar o tipo de tempo de execução para se certificar de que GPU é selecionado
preprocess = hub.load(PREPROCESS_MODEL)
bert = hub.load(BERT_MODEL)
inputs = preprocess(sentences)
outputs = bert(inputs)
print("Sentences:")
print(sentences)
print("\nBERT inputs:")
print(inputs)
print("\nPooled embeddings:")
print(outputs["pooled_output"])
print("\nPer token embeddings:")
print(outputs["sequence_output"])
Sentences:
["Here We Go Then, You And I is a 1999 album by Norwegian pop artist Morten Abel. It was Abel's second CD as a solo artist.", 'The album went straight to number one on the Norwegian album chart, and sold to double platinum.', 'Among the singles released from the album were the songs "Be My Lover" and "Hard To Stay Awake".', 'Riccardo Zegna is an Italian jazz musician.', 'Rajko Maksimović is a composer, writer, and music pedagogue.', 'One of the most significant Serbian composers of our time, Maksimović has been and remains active in creating works for different ensembles.', 'Ceylon spinach is a common name for several plants and may refer to: Basella alba Talinum fruticosum', 'A solar eclipse occurs when the Moon passes between Earth and the Sun, thereby totally or partly obscuring the image of the Sun for a viewer on Earth.', "A partial solar eclipse occurs in the polar regions of the Earth when the center of the Moon's shadow misses the Earth."]
BERT inputs:
{'input_word_ids': <tf.Tensor: shape=(9, 128), dtype=int32, numpy=
array([[ 101, 2182, 2057, ..., 0, 0, 0],
[ 101, 1996, 2201, ..., 0, 0, 0],
[ 101, 2426, 1996, ..., 0, 0, 0],
...,
[ 101, 16447, 6714, ..., 0, 0, 0],
[ 101, 1037, 5943, ..., 0, 0, 0],
[ 101, 1037, 7704, ..., 0, 0, 0]], dtype=int32)>, 'input_type_ids': <tf.Tensor: shape=(9, 128), dtype=int32, numpy=
array([[0, 0, 0, ..., 0, 0, 0],
[0, 0, 0, ..., 0, 0, 0],
[0, 0, 0, ..., 0, 0, 0],
...,
[0, 0, 0, ..., 0, 0, 0],
[0, 0, 0, ..., 0, 0, 0],
[0, 0, 0, ..., 0, 0, 0]], dtype=int32)>, 'input_mask': <tf.Tensor: shape=(9, 128), dtype=int32, numpy=
array([[1, 1, 1, ..., 0, 0, 0],
[1, 1, 1, ..., 0, 0, 0],
[1, 1, 1, ..., 0, 0, 0],
...,
[1, 1, 1, ..., 0, 0, 0],
[1, 1, 1, ..., 0, 0, 0],
[1, 1, 1, ..., 0, 0, 0]], dtype=int32)>}
Pooled embeddings:
tf.Tensor(
[[ 0.7975967 -0.48580563 0.49781477 ... -0.3448825 0.3972752
-0.2063976 ]
[ 0.57120323 -0.41205275 0.7048914 ... -0.35185075 0.19032307
-0.4041895 ]
[-0.699383 0.1586691 0.06569938 ... -0.0623244 -0.81550187
-0.07923658]
...
[-0.35727128 0.7708977 0.1575658 ... 0.44185698 -0.8644815
0.04504769]
[ 0.91077 0.41501352 0.5606345 ... -0.49263868 0.39640594
-0.05036103]
[ 0.90502906 -0.15505145 0.72672117 ... -0.34734493 0.5052651
-0.19543159]], shape=(9, 768), dtype=float32)
Per token embeddings:
tf.Tensor(
[[[ 1.0919718e+00 -5.3055555e-01 5.4639673e-01 ... -3.5962367e-01
4.2040938e-01 -2.0940571e-01]
[ 1.0143853e+00 7.8079259e-01 8.5375798e-01 ... 5.5282074e-01
-1.1245787e+00 5.6027526e-01]
[ 7.8862888e-01 7.7776514e-02 9.5150793e-01 ... -1.9075295e-01
5.9206045e-01 6.1910731e-01]
...
[-3.2203159e-01 -4.2521179e-01 -1.2823829e-01 ... -3.9094865e-01
-7.9097575e-01 4.2236605e-01]
[-3.1039350e-02 2.3985808e-01 -2.1994556e-01 ... -1.1440065e-01
-1.2680519e+00 -1.6136172e-01]
[-4.2063516e-01 5.4972863e-01 -3.2444897e-01 ... -1.8478543e-01
-1.1342984e+00 -5.8974154e-02]]
[[ 6.4930701e-01 -4.3808129e-01 8.7695646e-01 ... -3.6755449e-01
1.9267237e-01 -4.2864648e-01]
[-1.1248719e+00 2.9931602e-01 1.1799662e+00 ... 4.8729455e-01
5.3400528e-01 2.2836192e-01]
[-2.7057338e-01 3.2351881e-02 1.0425698e+00 ... 5.8993816e-01
1.5367918e+00 5.8425623e-01]
...
[-1.4762508e+00 1.8239072e-01 5.5875197e-02 ... -1.6733241e+00
-6.7398834e-01 -7.2449744e-01]
[-1.5138135e+00 5.8184558e-01 1.6141933e-01 ... -1.2640834e+00
-4.0272138e-01 -9.7197199e-01]
[-4.7153085e-01 2.2817247e-01 5.2776134e-01 ... -7.5483751e-01
-9.0903056e-01 -1.6954714e-01]]
[[-8.6609173e-01 1.6002113e-01 6.5794155e-02 ... -6.2405296e-02
-1.1432388e+00 -7.9403043e-02]
[ 7.7117836e-01 7.0804822e-01 1.1350115e-01 ... 7.8831035e-01
-3.1438148e-01 -9.7487110e-01]
[-4.4002479e-01 -3.0059522e-01 3.5479453e-01 ... 7.9739094e-02
-4.7393662e-01 -1.1001848e+00]
...
[-1.0205302e+00 2.6938522e-01 -4.7310370e-01 ... -6.6319543e-01
-1.4579915e+00 -3.4665459e-01]
[-9.7003460e-01 -4.5014530e-02 -5.9779549e-01 ... -3.0526626e-01
-1.2744237e+00 -2.8051588e-01]
[-7.3144108e-01 1.7699355e-01 -4.6257967e-01 ... -1.6062307e-01
-1.6346070e+00 -3.2060605e-01]]
...
[[-3.7375441e-01 1.0225365e+00 1.5888955e-01 ... 4.7453594e-01
-1.3108152e+00 4.5078207e-02]
[-4.1589144e-01 5.0019276e-01 -4.5844245e-01 ... 4.1482472e-01
-6.2065876e-01 -7.1555024e-01]
[-1.2504390e+00 5.0936425e-01 -5.7103634e-01 ... 3.5491806e-01
2.4368477e-01 -2.0577228e+00]
...
[ 1.3393667e-01 1.1859171e+00 -2.2169831e-01 ... -8.1946820e-01
-1.6737309e+00 -3.9692628e-01]
[-3.3662504e-01 1.6556220e+00 -3.7812781e-01 ... -9.6745497e-01
-1.4801039e+00 -8.3330971e-01]
[-2.2649485e-01 1.6178465e+00 -6.7044652e-01 ... -4.9078423e-01
-1.4535751e+00 -7.1707505e-01]]
[[ 1.5320227e+00 4.4165283e-01 6.3375801e-01 ... -5.3953874e-01
4.1937760e-01 -5.0403677e-02]
[ 8.9377600e-01 8.9395344e-01 3.0626178e-02 ... 5.9039176e-02
-2.0649448e-01 -8.4811246e-01]
[-1.8557828e-02 1.0479081e+00 -1.3329606e+00 ... -1.3869843e-01
-3.7879568e-01 -4.9068305e-01]
...
[ 1.4275622e+00 1.0696816e-01 -4.0635362e-02 ... -3.1778324e-02
-4.1460156e-01 7.0036823e-01]
[ 1.1286633e+00 1.4547651e-01 -6.1372471e-01 ... 4.7491628e-01
-3.9852056e-01 4.3124324e-01]
[ 1.4393284e+00 1.8030575e-01 -4.2854339e-01 ... -2.5022790e-01
-1.0000544e+00 3.5985461e-01]]
[[ 1.4993407e+00 -1.5631223e-01 9.2174333e-01 ... -3.6242130e-01
5.5635113e-01 -1.9797830e-01]
[ 1.1110539e+00 3.6651433e-01 3.5505858e-01 ... -5.4297698e-01
1.4471304e-01 -3.1675813e-01]
[ 2.4048802e-01 3.8115788e-01 -5.9182465e-01 ... 3.7410852e-01
-5.9829473e-01 -1.0166264e+00]
...
[ 1.0158644e+00 5.0260526e-01 1.0737082e-01 ... -9.5642781e-01
-4.1039532e-01 -2.6760197e-01]
[ 1.1848929e+00 6.5479934e-01 1.0166168e-03 ... -8.6154389e-01
-8.8036627e-02 -3.0636966e-01]
[ 1.2669108e+00 4.7768092e-01 6.6289604e-03 ... -1.1585802e+00
-7.0675731e-02 -1.8678737e-01]]], shape=(9, 128, 768), dtype=float32)
Similaridade semântica
Agora vamos dar uma olhada nas pooled_output embeddings de nossas sentenças e comparar como eles são semelhantes em todo frases.
Funções auxiliares
def plot_similarity(features, labels):
"""Plot a similarity matrix of the embeddings."""
cos_sim = pairwise.cosine_similarity(features)
sns.set(font_scale=1.2)
cbar_kws=dict(use_gridspec=False, location="left")
g = sns.heatmap(
cos_sim, xticklabels=labels, yticklabels=labels,
vmin=0, vmax=1, cmap="Blues", cbar_kws=cbar_kws)
g.tick_params(labelright=True, labelleft=False)
g.set_yticklabels(labels, rotation=0)
g.set_title("Semantic Textual Similarity")

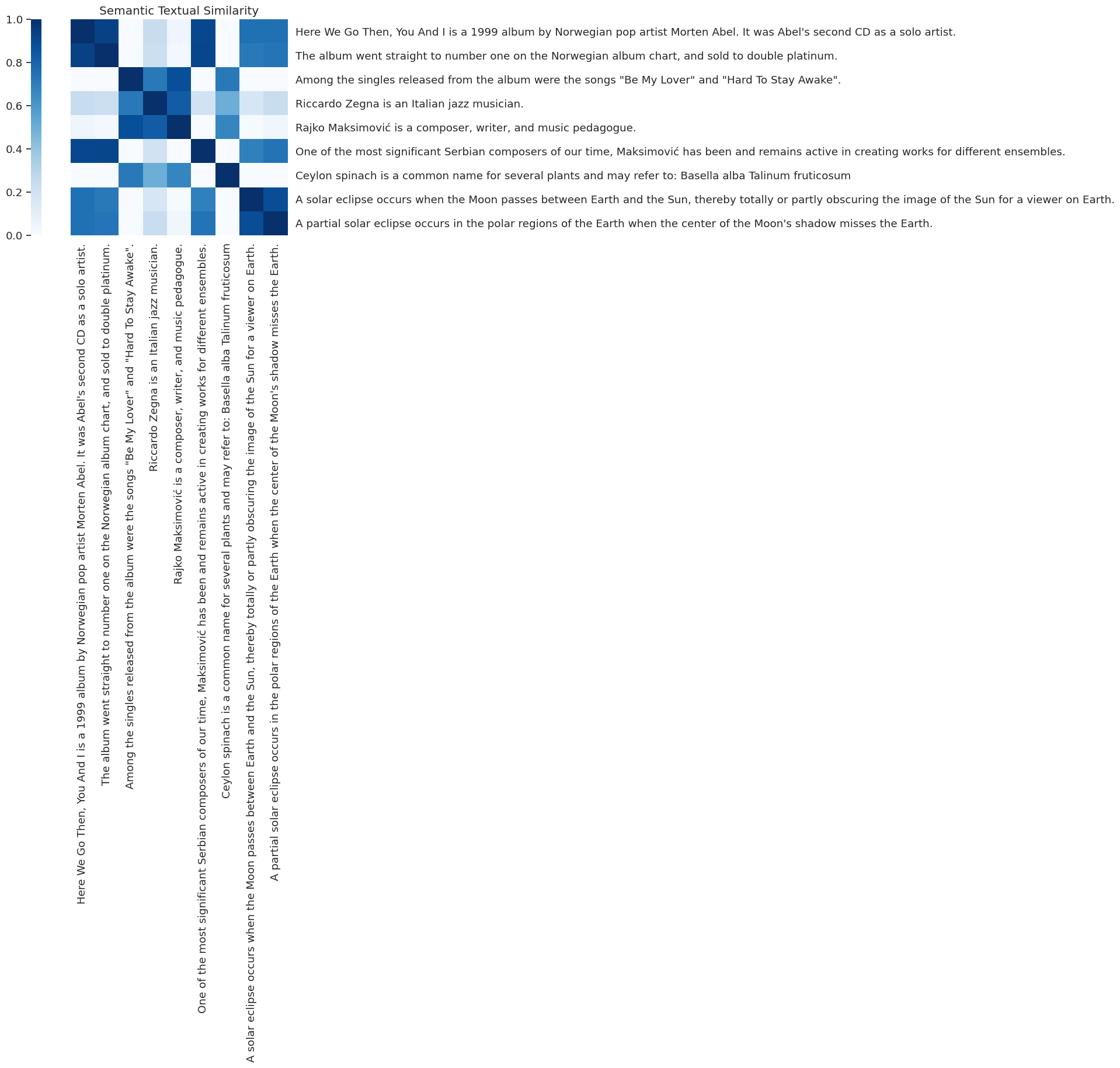

plot_similarity(outputs["pooled_output"], sentences)
Saber mais
- Encontre mais modelos BERT TensorFlow Hub
- Este notebook demonstra inferência simples com BERT, você pode encontrar um tutorial mais avançado sobre BERT ajuste fino na tensorflow.org/official_models/fine_tuning_bert
- Nós usamos apenas um chip de GPU para executar o modelo, você pode aprender mais sobre como modelos de carga usando tf.distribute em tensorflow.org/tutorials/distribute/save_and_load
