TensorBoard স্থানান্তর করুন: TensorFlow এর ভিজ্যুয়ালাইজেশন টুলকিট

TensorFlow.org-এ দেখুন

Google Colab-এ চালান

GitHub-এ উৎস দেখুন

নোটবুক ডাউনলোড করুন

TensorBoard হল TensorFlow-এ পরিমাপ এবং ভিজ্যুয়ালাইজেশন প্রদানের জন্য একটি অন্তর্নির্মিত টুল। সাধারণ মেশিন লার্নিং এক্সপেরিমেন্ট মেট্রিক্স, যেমন নির্ভুলতা এবং ক্ষতি, টেনসরবোর্ডে ট্র্যাক এবং প্রদর্শিত হতে পারে। TensorBoard TensorFlow 1 এবং 2 কোডের সাথে সামঞ্জস্যপূর্ণ।

TensorFlow 1-এ, tf.estimator.Estimator ডিফল্টরূপে টেনসরবোর্ডের সারাংশ সংরক্ষণ করে। তুলনায়, TensorFlow 2-এ, tf.keras.callbacks.TensorBoard কলব্যাক ব্যবহার করে সারাংশ সংরক্ষণ করা যেতে পারে।

এই নির্দেশিকাটি দেখায় কিভাবে TensorBoard ব্যবহার করতে হয়, প্রথমে, টেনসরফ্লো 1 এ এস্টিমেটর সহ, এবং তারপর, কিভাবে TensorFlow 2-এ সমতুল্য প্রক্রিয়া চালাতে হয়।

সেটআপ

import tensorflow.compat.v1 as tf1
import tensorflow as tf
import tempfile
import numpy as np
import datetime
%load_ext tensorboard

mnist = tf.keras.datasets.mnist # The MNIST dataset.

(x_train, y_train),(x_test, y_test) = mnist.load_data()
x_train, x_test = x_train / 255.0, x_test / 255.0

Downloading data from https://storage.googleapis.com/tensorflow/tf-keras-datasets/mnist.npz
11493376/11490434 [==============================] - 0s 0us/step
11501568/11490434 [==============================] - 0s 0us/step

TensorFlow 1: tf.estimator সহ TensorBoard

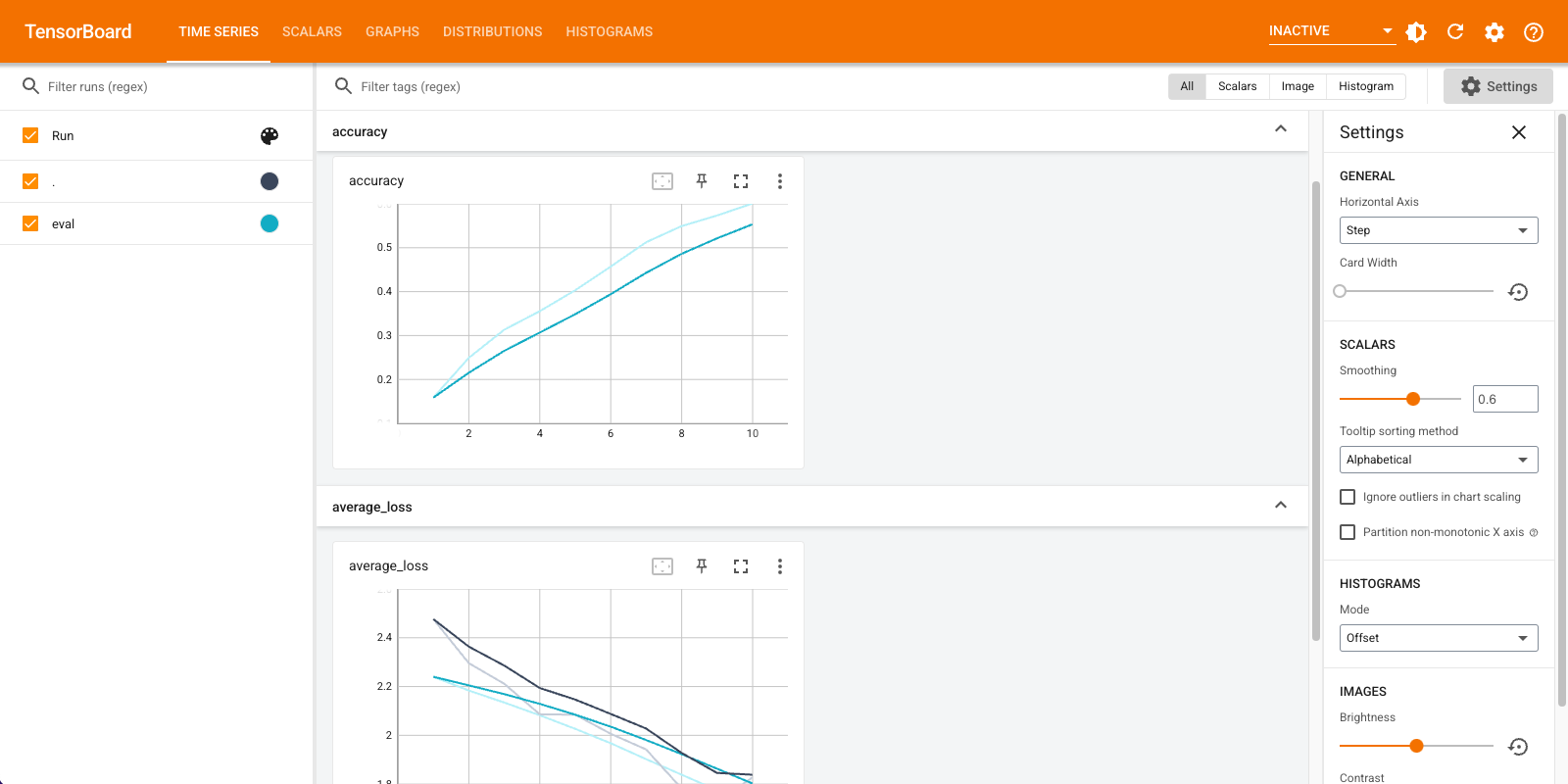

এই TensorFlow 1 উদাহরণে, আপনি একটি tf.estimator.DNNClassifier সূচনা করেন, প্রশিক্ষণ দেন এবং এটি MNIST ডেটাসেটে মূল্যায়ন করেন এবং মেট্রিক্স প্রদর্শন করতে TensorBoard ব্যবহার করুন:

%reload_ext tensorboard

feature_columns = [tf1.feature_column.numeric_column("x", shape=[28, 28])]

config = tf1.estimator.RunConfig(save_summary_steps=1,
                                 save_checkpoints_steps=1)

path = tempfile.mkdtemp()

classifier = tf1.estimator.DNNClassifier(
    feature_columns=feature_columns,
    hidden_units=[256, 32],
    optimizer=tf1.train.AdamOptimizer(0.001),
    n_classes=10,
    dropout=0.1,
    model_dir=path,
    config = config
)

train_input_fn = tf1.estimator.inputs.numpy_input_fn(
    x={"x": x_train},
    y=y_train.astype(np.int32),
    num_epochs=10,
    batch_size=50,
    shuffle=True,
)

test_input_fn = tf1.estimator.inputs.numpy_input_fn(
    x={"x": x_test},
    y=y_test.astype(np.int32),
    num_epochs=10,
    shuffle=False
)

train_spec = tf1.estimator.TrainSpec(input_fn=train_input_fn, max_steps=10)
eval_spec = tf1.estimator.EvalSpec(input_fn=test_input_fn,
                                   steps=10,
                                   throttle_secs=0)

tf1.estimator.train_and_evaluate(estimator=classifier,
                                train_spec=train_spec,
                                eval_spec=eval_spec)

INFO:tensorflow:Using config: {'_model_dir': '/tmp/tmp9w0s5sgg', '_tf_random_seed': None, '_save_summary_steps': 1, '_save_checkpoints_steps': 1, '_save_checkpoints_secs': None, '_session_config': allow_soft_placement: true
graph_options {
  rewrite_options {
    meta_optimizer_iterations: ONE
  }
}
, '_keep_checkpoint_max': 5, '_keep_checkpoint_every_n_hours': 10000, '_log_step_count_steps': 100, '_train_distribute': None, '_device_fn': None, '_protocol': None, '_eval_distribute': None, '_experimental_distribute': None, '_experimental_max_worker_delay_secs': None, '_session_creation_timeout_secs': 7200, '_checkpoint_save_graph_def': True, '_service': None, '_cluster_spec': ClusterSpec({}), '_task_type': 'worker', '_task_id': 0, '_global_id_in_cluster': 0, '_master': '', '_evaluation_master': '', '_is_chief': True, '_num_ps_replicas': 0, '_num_worker_replicas': 1}
WARNING:tensorflow:From /tmp/ipykernel_13367/2752664473.py:20: The name tf.estimator.inputs is deprecated. Please use tf.compat.v1.estimator.inputs instead.

WARNING:tensorflow:From /tmp/ipykernel_13367/2752664473.py:20: The name tf.estimator.inputs.numpy_input_fn is deprecated. Please use tf.compat.v1.estimator.inputs.numpy_input_fn instead.

INFO:tensorflow:Not using Distribute Coordinator.
INFO:tensorflow:Running training and evaluation locally (non-distributed).
INFO:tensorflow:Start train and evaluate loop. The evaluate will happen after every checkpoint. Checkpoint frequency is determined based on RunConfig arguments: save_checkpoints_steps 1 or save_checkpoints_secs None.
WARNING:tensorflow:From /tmpfs/src/tf_docs_env/lib/python3.7/site-packages/tensorflow/python/training/training_util.py:236: Variable.initialized_value (from tensorflow.python.ops.variables) is deprecated and will be removed in a future version.
Instructions for updating:
Use Variable.read_value. Variables in 2.X are initialized automatically both in eager and graph (inside tf.defun) contexts.
WARNING:tensorflow:From /tmpfs/src/tf_docs_env/lib/python3.7/site-packages/tensorflow_estimator/python/estimator/inputs/queues/feeding_queue_runner.py:65: QueueRunner.__init__ (from tensorflow.python.training.queue_runner_impl) is deprecated and will be removed in a future version.
Instructions for updating:
To construct input pipelines, use the `tf.data` module.
WARNING:tensorflow:From /tmpfs/src/tf_docs_env/lib/python3.7/site-packages/tensorflow_estimator/python/estimator/inputs/queues/feeding_functions.py:491: add_queue_runner (from tensorflow.python.training.queue_runner_impl) is deprecated and will be removed in a future version.
Instructions for updating:
To construct input pipelines, use the `tf.data` module.
INFO:tensorflow:Calling model_fn.
INFO:tensorflow:Done calling model_fn.
INFO:tensorflow:Create CheckpointSaverHook.
INFO:tensorflow:Graph was finalized.
INFO:tensorflow:Running local_init_op.
INFO:tensorflow:Done running local_init_op.
WARNING:tensorflow:From /tmpfs/src/tf_docs_env/lib/python3.7/site-packages/tensorflow/python/training/monitored_session.py:907: start_queue_runners (from tensorflow.python.training.queue_runner_impl) is deprecated and will be removed in a future version.
Instructions for updating:
To construct input pipelines, use the `tf.data` module.
INFO:tensorflow:Calling checkpoint listeners before saving checkpoint 0...
INFO:tensorflow:Saving checkpoints for 0 into /tmp/tmp9w0s5sgg/model.ckpt.
INFO:tensorflow:Calling checkpoint listeners after saving checkpoint 0...
INFO:tensorflow:Calling checkpoint listeners before saving checkpoint 1...
INFO:tensorflow:Saving checkpoints for 1 into /tmp/tmp9w0s5sgg/model.ckpt.
INFO:tensorflow:Calling checkpoint listeners after saving checkpoint 1...
INFO:tensorflow:Calling model_fn.
INFO:tensorflow:Done calling model_fn.
INFO:tensorflow:Starting evaluation at 2021-09-22T20:09:45
INFO:tensorflow:Graph was finalized.
INFO:tensorflow:Restoring parameters from /tmp/tmp9w0s5sgg/model.ckpt-1
INFO:tensorflow:Running local_init_op.
INFO:tensorflow:Done running local_init_op.
INFO:tensorflow:Evaluation [1/10]
INFO:tensorflow:Evaluation [2/10]
INFO:tensorflow:Evaluation [3/10]
INFO:tensorflow:Evaluation [4/10]
INFO:tensorflow:Evaluation [5/10]
INFO:tensorflow:Evaluation [6/10]
INFO:tensorflow:Evaluation [7/10]
INFO:tensorflow:Evaluation [8/10]
INFO:tensorflow:Evaluation [9/10]
INFO:tensorflow:Evaluation [10/10]
INFO:tensorflow:Inference Time : 0.25105s
INFO:tensorflow:Finished evaluation at 2021-09-22-20:09:45
INFO:tensorflow:Saving dict for global step 1: accuracy = 0.16328125, average_loss = 2.2459474, global_step = 1, loss = 287.48126
INFO:tensorflow:Saving 'checkpoint_path' summary for global step 1: /tmp/tmp9w0s5sgg/model.ckpt-1
INFO:tensorflow:loss = 115.65201, step = 0
INFO:tensorflow:Calling checkpoint listeners before saving checkpoint 2...
INFO:tensorflow:Saving checkpoints for 2 into /tmp/tmp9w0s5sgg/model.ckpt.
INFO:tensorflow:Calling checkpoint listeners after saving checkpoint 2...
INFO:tensorflow:Calling model_fn.
INFO:tensorflow:Done calling model_fn.
INFO:tensorflow:Starting evaluation at 2021-09-22T20:09:46
INFO:tensorflow:Graph was finalized.
INFO:tensorflow:Restoring parameters from /tmp/tmp9w0s5sgg/model.ckpt-2
INFO:tensorflow:Running local_init_op.
INFO:tensorflow:Done running local_init_op.
INFO:tensorflow:Evaluation [1/10]
INFO:tensorflow:Evaluation [2/10]
INFO:tensorflow:Evaluation [3/10]
INFO:tensorflow:Evaluation [4/10]
INFO:tensorflow:Evaluation [5/10]
INFO:tensorflow:Evaluation [6/10]
INFO:tensorflow:Evaluation [7/10]
INFO:tensorflow:Evaluation [8/10]
INFO:tensorflow:Evaluation [9/10]
INFO:tensorflow:Evaluation [10/10]
INFO:tensorflow:Inference Time : 0.24542s
INFO:tensorflow:Finished evaluation at 2021-09-22-20:09:46
INFO:tensorflow:Saving dict for global step 2: accuracy = 0.25625, average_loss = 2.1821105, global_step = 2, loss = 279.31015
INFO:tensorflow:Saving 'checkpoint_path' summary for global step 2: /tmp/tmp9w0s5sgg/model.ckpt-2
INFO:tensorflow:Calling checkpoint listeners before saving checkpoint 3...
INFO:tensorflow:Saving checkpoints for 3 into /tmp/tmp9w0s5sgg/model.ckpt.
INFO:tensorflow:Calling checkpoint listeners after saving checkpoint 3...
INFO:tensorflow:Calling model_fn.
INFO:tensorflow:Done calling model_fn.
INFO:tensorflow:Starting evaluation at 2021-09-22T20:09:46
INFO:tensorflow:Graph was finalized.
INFO:tensorflow:Restoring parameters from /tmp/tmp9w0s5sgg/model.ckpt-3
INFO:tensorflow:Running local_init_op.
INFO:tensorflow:Done running local_init_op.
INFO:tensorflow:Evaluation [1/10]
INFO:tensorflow:Evaluation [2/10]
INFO:tensorflow:Evaluation [3/10]
INFO:tensorflow:Evaluation [4/10]
INFO:tensorflow:Evaluation [5/10]
INFO:tensorflow:Evaluation [6/10]
INFO:tensorflow:Evaluation [7/10]
INFO:tensorflow:Evaluation [8/10]
INFO:tensorflow:Evaluation [9/10]
INFO:tensorflow:Evaluation [10/10]
INFO:tensorflow:Inference Time : 0.24425s
INFO:tensorflow:Finished evaluation at 2021-09-22-20:09:46
INFO:tensorflow:Saving dict for global step 3: accuracy = 0.3, average_loss = 2.1269565, global_step = 3, loss = 272.25043
INFO:tensorflow:Saving 'checkpoint_path' summary for global step 3: /tmp/tmp9w0s5sgg/model.ckpt-3
INFO:tensorflow:Calling checkpoint listeners before saving checkpoint 4...
INFO:tensorflow:Saving checkpoints for 4 into /tmp/tmp9w0s5sgg/model.ckpt.
INFO:tensorflow:Calling checkpoint listeners after saving checkpoint 4...
INFO:tensorflow:Calling model_fn.
INFO:tensorflow:Done calling model_fn.
INFO:tensorflow:Starting evaluation at 2021-09-22T20:09:47
INFO:tensorflow:Graph was finalized.
INFO:tensorflow:Restoring parameters from /tmp/tmp9w0s5sgg/model.ckpt-4
INFO:tensorflow:Running local_init_op.
INFO:tensorflow:Done running local_init_op.
INFO:tensorflow:Evaluation [1/10]
INFO:tensorflow:Evaluation [2/10]
INFO:tensorflow:Evaluation [3/10]
INFO:tensorflow:Evaluation [4/10]
INFO:tensorflow:Evaluation [5/10]
INFO:tensorflow:Evaluation [6/10]
INFO:tensorflow:Evaluation [7/10]
INFO:tensorflow:Evaluation [8/10]
INFO:tensorflow:Evaluation [9/10]
INFO:tensorflow:Evaluation [10/10]
INFO:tensorflow:Inference Time : 0.25865s
INFO:tensorflow:Finished evaluation at 2021-09-22-20:09:47
INFO:tensorflow:Saving dict for global step 4: accuracy = 0.3484375, average_loss = 2.0719538, global_step = 4, loss = 265.21008
INFO:tensorflow:Saving 'checkpoint_path' summary for global step 4: /tmp/tmp9w0s5sgg/model.ckpt-4
INFO:tensorflow:Calling checkpoint listeners before saving checkpoint 5...
INFO:tensorflow:Saving checkpoints for 5 into /tmp/tmp9w0s5sgg/model.ckpt.
WARNING:tensorflow:From /tmpfs/src/tf_docs_env/lib/python3.7/site-packages/tensorflow/python/training/saver.py:971: remove_checkpoint (from tensorflow.python.training.checkpoint_management) is deprecated and will be removed in a future version.
Instructions for updating:
Use standard file APIs to delete files with this prefix.
INFO:tensorflow:Calling checkpoint listeners after saving checkpoint 5...
INFO:tensorflow:Calling model_fn.
INFO:tensorflow:Done calling model_fn.
INFO:tensorflow:Starting evaluation at 2021-09-22T20:09:47
INFO:tensorflow:Graph was finalized.
INFO:tensorflow:Restoring parameters from /tmp/tmp9w0s5sgg/model.ckpt-5
INFO:tensorflow:Running local_init_op.
INFO:tensorflow:Done running local_init_op.
INFO:tensorflow:Evaluation [1/10]
INFO:tensorflow:Evaluation [2/10]
INFO:tensorflow:Evaluation [3/10]
INFO:tensorflow:Evaluation [4/10]
INFO:tensorflow:Evaluation [5/10]
INFO:tensorflow:Evaluation [6/10]
INFO:tensorflow:Evaluation [7/10]
INFO:tensorflow:Evaluation [8/10]
INFO:tensorflow:Evaluation [9/10]
INFO:tensorflow:Evaluation [10/10]
INFO:tensorflow:Inference Time : 0.23830s
INFO:tensorflow:Finished evaluation at 2021-09-22-20:09:47
INFO:tensorflow:Saving dict for global step 5: accuracy = 0.40078124, average_loss = 2.013233, global_step = 5, loss = 257.69382
INFO:tensorflow:Saving 'checkpoint_path' summary for global step 5: /tmp/tmp9w0s5sgg/model.ckpt-5
INFO:tensorflow:Calling checkpoint listeners before saving checkpoint 6...
INFO:tensorflow:Saving checkpoints for 6 into /tmp/tmp9w0s5sgg/model.ckpt.
INFO:tensorflow:Calling checkpoint listeners after saving checkpoint 6...
INFO:tensorflow:Calling model_fn.
INFO:tensorflow:Done calling model_fn.
INFO:tensorflow:Starting evaluation at 2021-09-22T20:09:48
INFO:tensorflow:Graph was finalized.
INFO:tensorflow:Restoring parameters from /tmp/tmp9w0s5sgg/model.ckpt-6
INFO:tensorflow:Running local_init_op.
INFO:tensorflow:Done running local_init_op.
INFO:tensorflow:Evaluation [1/10]
INFO:tensorflow:Evaluation [2/10]
INFO:tensorflow:Evaluation [3/10]
INFO:tensorflow:Evaluation [4/10]
INFO:tensorflow:Evaluation [5/10]
INFO:tensorflow:Evaluation [6/10]
INFO:tensorflow:Evaluation [7/10]
INFO:tensorflow:Evaluation [8/10]
INFO:tensorflow:Evaluation [9/10]
INFO:tensorflow:Evaluation [10/10]
INFO:tensorflow:Inference Time : 0.24491s
INFO:tensorflow:Finished evaluation at 2021-09-22-20:09:48
INFO:tensorflow:Saving dict for global step 6: accuracy = 0.45546874, average_loss = 1.9495137, global_step = 6, loss = 249.53775
INFO:tensorflow:Saving 'checkpoint_path' summary for global step 6: /tmp/tmp9w0s5sgg/model.ckpt-6
INFO:tensorflow:Calling checkpoint listeners before saving checkpoint 7...
INFO:tensorflow:Saving checkpoints for 7 into /tmp/tmp9w0s5sgg/model.ckpt.
INFO:tensorflow:Calling checkpoint listeners after saving checkpoint 7...
INFO:tensorflow:Calling model_fn.
INFO:tensorflow:Done calling model_fn.
INFO:tensorflow:Starting evaluation at 2021-09-22T20:09:48
INFO:tensorflow:Graph was finalized.
INFO:tensorflow:Restoring parameters from /tmp/tmp9w0s5sgg/model.ckpt-7
INFO:tensorflow:Running local_init_op.
INFO:tensorflow:Done running local_init_op.
INFO:tensorflow:Evaluation [1/10]
INFO:tensorflow:Evaluation [2/10]
INFO:tensorflow:Evaluation [3/10]
INFO:tensorflow:Evaluation [4/10]
INFO:tensorflow:Evaluation [5/10]
INFO:tensorflow:Evaluation [6/10]
INFO:tensorflow:Evaluation [7/10]
INFO:tensorflow:Evaluation [8/10]
INFO:tensorflow:Evaluation [9/10]
INFO:tensorflow:Evaluation [10/10]
INFO:tensorflow:Inference Time : 0.24294s
INFO:tensorflow:Finished evaluation at 2021-09-22-20:09:49
INFO:tensorflow:Saving dict for global step 7: accuracy = 0.4984375, average_loss = 1.8863195, global_step = 7, loss = 241.4489
INFO:tensorflow:Saving 'checkpoint_path' summary for global step 7: /tmp/tmp9w0s5sgg/model.ckpt-7
INFO:tensorflow:Calling checkpoint listeners before saving checkpoint 8...
INFO:tensorflow:Saving checkpoints for 8 into /tmp/tmp9w0s5sgg/model.ckpt.
INFO:tensorflow:Calling checkpoint listeners after saving checkpoint 8...
INFO:tensorflow:Calling model_fn.
INFO:tensorflow:Done calling model_fn.
INFO:tensorflow:Starting evaluation at 2021-09-22T20:09:49
INFO:tensorflow:Graph was finalized.
INFO:tensorflow:Restoring parameters from /tmp/tmp9w0s5sgg/model.ckpt-8
INFO:tensorflow:Running local_init_op.
INFO:tensorflow:Done running local_init_op.
INFO:tensorflow:Evaluation [1/10]
INFO:tensorflow:Evaluation [2/10]
INFO:tensorflow:Evaluation [3/10]
INFO:tensorflow:Evaluation [4/10]
INFO:tensorflow:Evaluation [5/10]
INFO:tensorflow:Evaluation [6/10]
INFO:tensorflow:Evaluation [7/10]
INFO:tensorflow:Evaluation [8/10]
INFO:tensorflow:Evaluation [9/10]
INFO:tensorflow:Evaluation [10/10]
INFO:tensorflow:Inference Time : 0.24205s
INFO:tensorflow:Finished evaluation at 2021-09-22-20:09:49
INFO:tensorflow:Saving dict for global step 8: accuracy = 0.50390625, average_loss = 1.8260235, global_step = 8, loss = 233.731
INFO:tensorflow:Saving 'checkpoint_path' summary for global step 8: /tmp/tmp9w0s5sgg/model.ckpt-8
INFO:tensorflow:Calling checkpoint listeners before saving checkpoint 9...
INFO:tensorflow:Saving checkpoints for 9 into /tmp/tmp9w0s5sgg/model.ckpt.
INFO:tensorflow:Calling checkpoint listeners after saving checkpoint 9...
INFO:tensorflow:Calling model_fn.
INFO:tensorflow:Done calling model_fn.
INFO:tensorflow:Starting evaluation at 2021-09-22T20:09:49
INFO:tensorflow:Graph was finalized.
INFO:tensorflow:Restoring parameters from /tmp/tmp9w0s5sgg/model.ckpt-9
INFO:tensorflow:Running local_init_op.
INFO:tensorflow:Done running local_init_op.
INFO:tensorflow:Evaluation [1/10]
INFO:tensorflow:Evaluation [2/10]
INFO:tensorflow:Evaluation [3/10]
INFO:tensorflow:Evaluation [4/10]
INFO:tensorflow:Evaluation [5/10]
INFO:tensorflow:Evaluation [6/10]
INFO:tensorflow:Evaluation [7/10]
INFO:tensorflow:Evaluation [8/10]
INFO:tensorflow:Evaluation [9/10]
INFO:tensorflow:Evaluation [10/10]
INFO:tensorflow:Inference Time : 0.24289s
INFO:tensorflow:Finished evaluation at 2021-09-22-20:09:50
INFO:tensorflow:Saving dict for global step 9: accuracy = 0.5046875, average_loss = 1.770147, global_step = 9, loss = 226.57881
INFO:tensorflow:Saving 'checkpoint_path' summary for global step 9: /tmp/tmp9w0s5sgg/model.ckpt-9
INFO:tensorflow:Calling checkpoint listeners before saving checkpoint 10...
INFO:tensorflow:Saving checkpoints for 10 into /tmp/tmp9w0s5sgg/model.ckpt.
INFO:tensorflow:Calling checkpoint listeners after saving checkpoint 10...
INFO:tensorflow:Calling model_fn.
INFO:tensorflow:Done calling model_fn.
INFO:tensorflow:Starting evaluation at 2021-09-22T20:09:50
INFO:tensorflow:Graph was finalized.
INFO:tensorflow:Restoring parameters from /tmp/tmp9w0s5sgg/model.ckpt-10
INFO:tensorflow:Running local_init_op.
INFO:tensorflow:Done running local_init_op.
INFO:tensorflow:Evaluation [1/10]
INFO:tensorflow:Evaluation [2/10]
INFO:tensorflow:Evaluation [3/10]
INFO:tensorflow:Evaluation [4/10]
INFO:tensorflow:Evaluation [5/10]
INFO:tensorflow:Evaluation [6/10]
INFO:tensorflow:Evaluation [7/10]
INFO:tensorflow:Evaluation [8/10]
INFO:tensorflow:Evaluation [9/10]
INFO:tensorflow:Evaluation [10/10]
INFO:tensorflow:Inference Time : 0.24503s
INFO:tensorflow:Finished evaluation at 2021-09-22-20:09:50
INFO:tensorflow:Saving dict for global step 10: accuracy = 0.50859374, average_loss = 1.7165858, global_step = 10, loss = 219.72298
INFO:tensorflow:Saving 'checkpoint_path' summary for global step 10: /tmp/tmp9w0s5sgg/model.ckpt-10
INFO:tensorflow:Loss for final step: 82.50392.
({'accuracy': 0.50859374,
  'average_loss': 1.7165858,
  'loss': 219.72298,
  'global_step': 10},
 [])

%tensorboard --logdir {classifier.model_dir}

TensorFlow 2: কেরাস কলব্যাক এবং Model.fit সহ TensorBoard

এই TensorFlow 2 উদাহরণে, আপনি tf.keras.callbacks.TensorBoard কলব্যাক দিয়ে লগ তৈরি এবং সঞ্চয় করেন এবং মডেলটিকে প্রশিক্ষণ দেন। কলব্যাক প্রতি যুগে নির্ভুলতা এবং ক্ষতি ট্র্যাক করে। এটি callbacks তালিকায় Model.fit এ পাস করা হয়েছে।

%reload_ext tensorboard

def create_model():
  return tf.keras.models.Sequential([
    tf.keras.layers.Flatten(input_shape=(28, 28)),
    tf.keras.layers.Dense(512, activation='relu'),
    tf.keras.layers.Dropout(0.2),
    tf.keras.layers.Dense(10, activation='softmax')
  ])

model = create_model()
model.compile(optimizer='adam',
              loss='sparse_categorical_crossentropy',
              metrics=['accuracy'],
              steps_per_execution=10)

log_dir = tempfile.mkdtemp()
tensorboard_callback = tf.keras.callbacks.TensorBoard(
  log_dir=log_dir,
  histogram_freq=1) # Enable histogram computation with each epoch.

model.fit(x=x_train,
          y=y_train,
          epochs=10,
          validation_data=(x_test, y_test),
          callbacks=[tensorboard_callback])

Epoch 1/10
1875/1875 [==============================] - 4s 2ms/step - loss: 0.2205 - accuracy: 0.9351 - val_loss: 0.1078 - val_accuracy: 0.9675
Epoch 2/10
1875/1875 [==============================] - 3s 2ms/step - loss: 0.0958 - accuracy: 0.9711 - val_loss: 0.0852 - val_accuracy: 0.9716
Epoch 3/10
1875/1875 [==============================] - 3s 2ms/step - loss: 0.0685 - accuracy: 0.9786 - val_loss: 0.0728 - val_accuracy: 0.9772
Epoch 4/10
1875/1875 [==============================] - 3s 2ms/step - loss: 0.0525 - accuracy: 0.9834 - val_loss: 0.0694 - val_accuracy: 0.9786
Epoch 5/10
1875/1875 [==============================] - 3s 1ms/step - loss: 0.0429 - accuracy: 0.9860 - val_loss: 0.0705 - val_accuracy: 0.9784
Epoch 6/10
1875/1875 [==============================] - 3s 2ms/step - loss: 0.0369 - accuracy: 0.9876 - val_loss: 0.0616 - val_accuracy: 0.9822
Epoch 7/10
1875/1875 [==============================] - 3s 1ms/step - loss: 0.0316 - accuracy: 0.9897 - val_loss: 0.0777 - val_accuracy: 0.9787
Epoch 8/10
1875/1875 [==============================] - 3s 2ms/step - loss: 0.0267 - accuracy: 0.9910 - val_loss: 0.0709 - val_accuracy: 0.9806
Epoch 9/10
1875/1875 [==============================] - 3s 2ms/step - loss: 0.0239 - accuracy: 0.9918 - val_loss: 0.0651 - val_accuracy: 0.9835
Epoch 10/10
1875/1875 [==============================] - 3s 2ms/step - loss: 0.0225 - accuracy: 0.9920 - val_loss: 0.0713 - val_accuracy: 0.9819
<keras.callbacks.History at 0x7f3b2c590310>

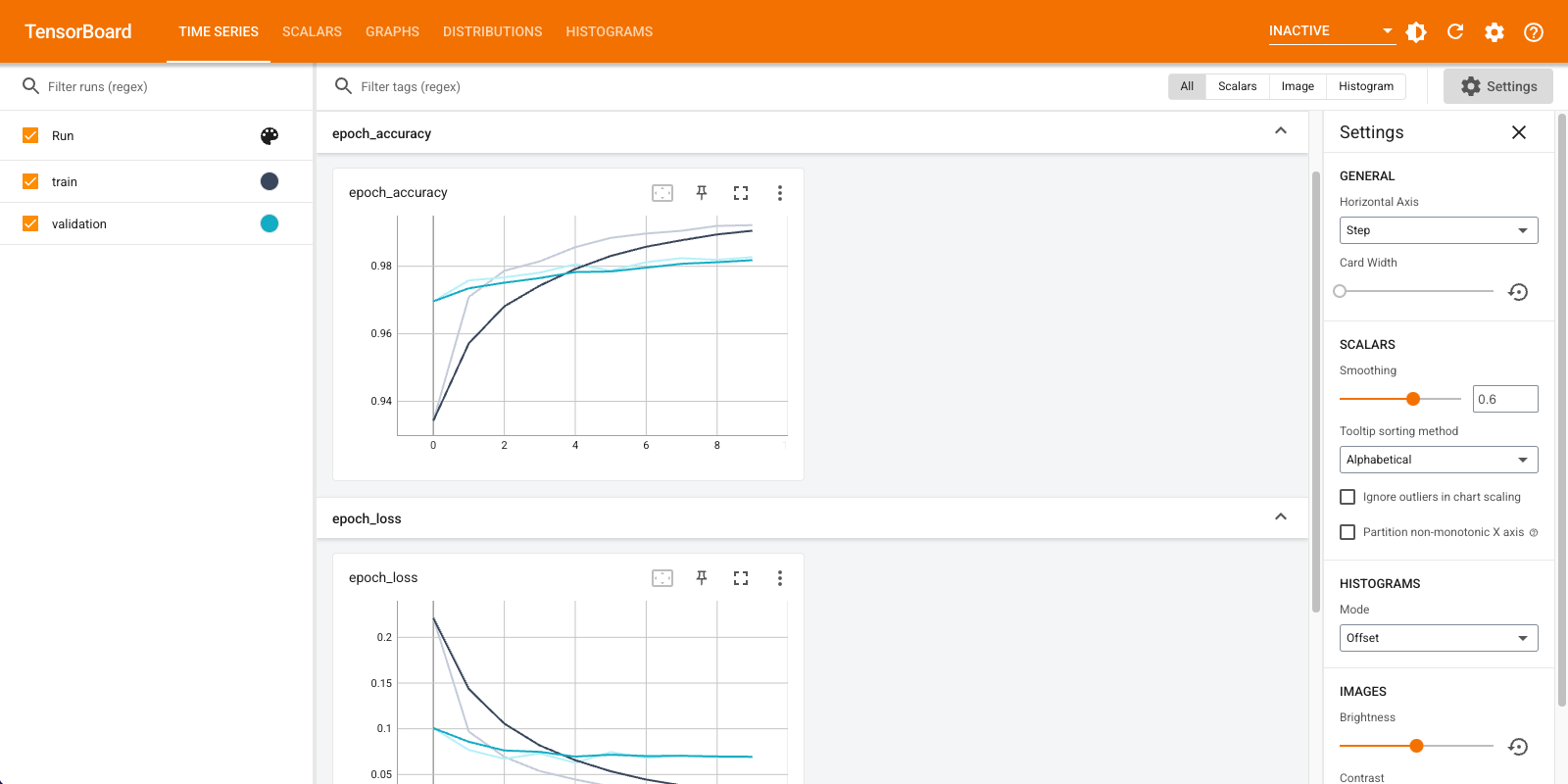

%tensorboard --logdir {tensorboard_callback.log_dir}

পরবর্তী পদক্ষেপ

শুরু করুন গাইডে টেনসরবোর্ড সম্পর্কে আরও জানুন।
নিম্ন স্তরের API-এর জন্য, TensorFlow 2 গাইডে tf.summary মাইগ্রেশন দেখুন।
